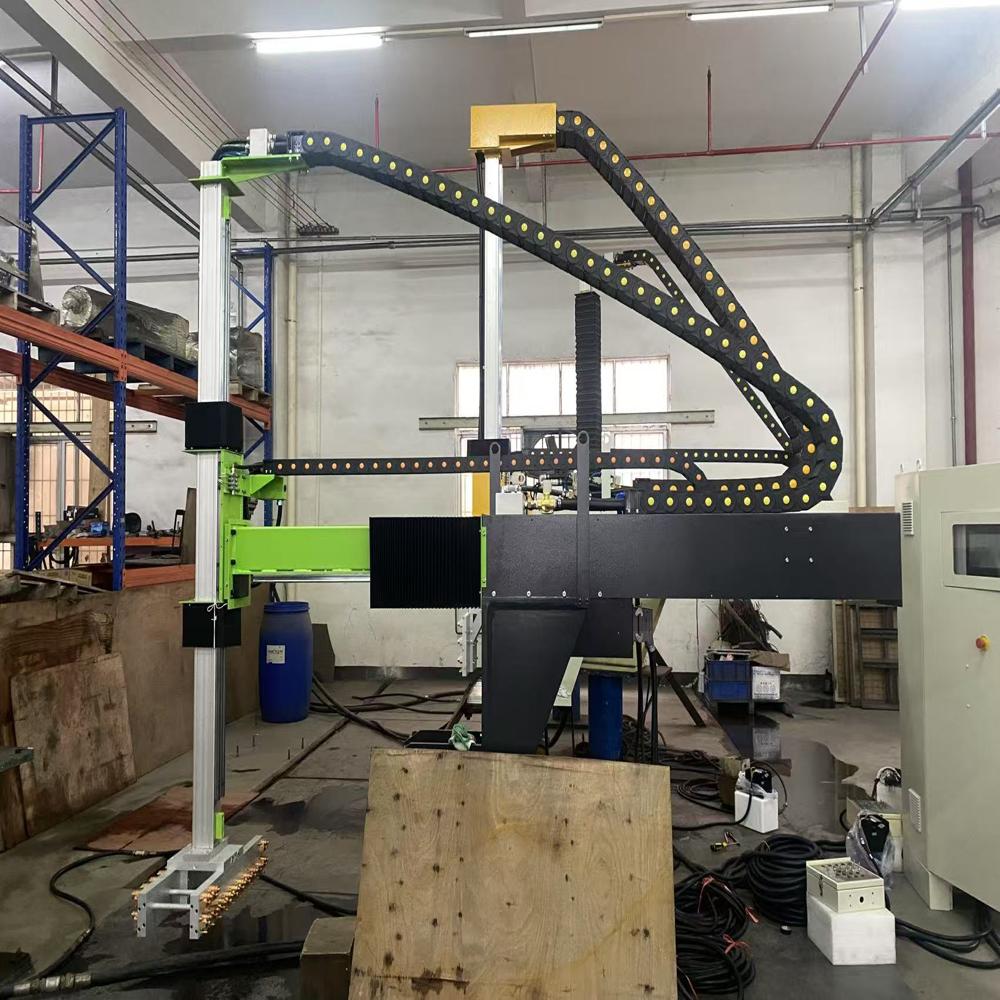

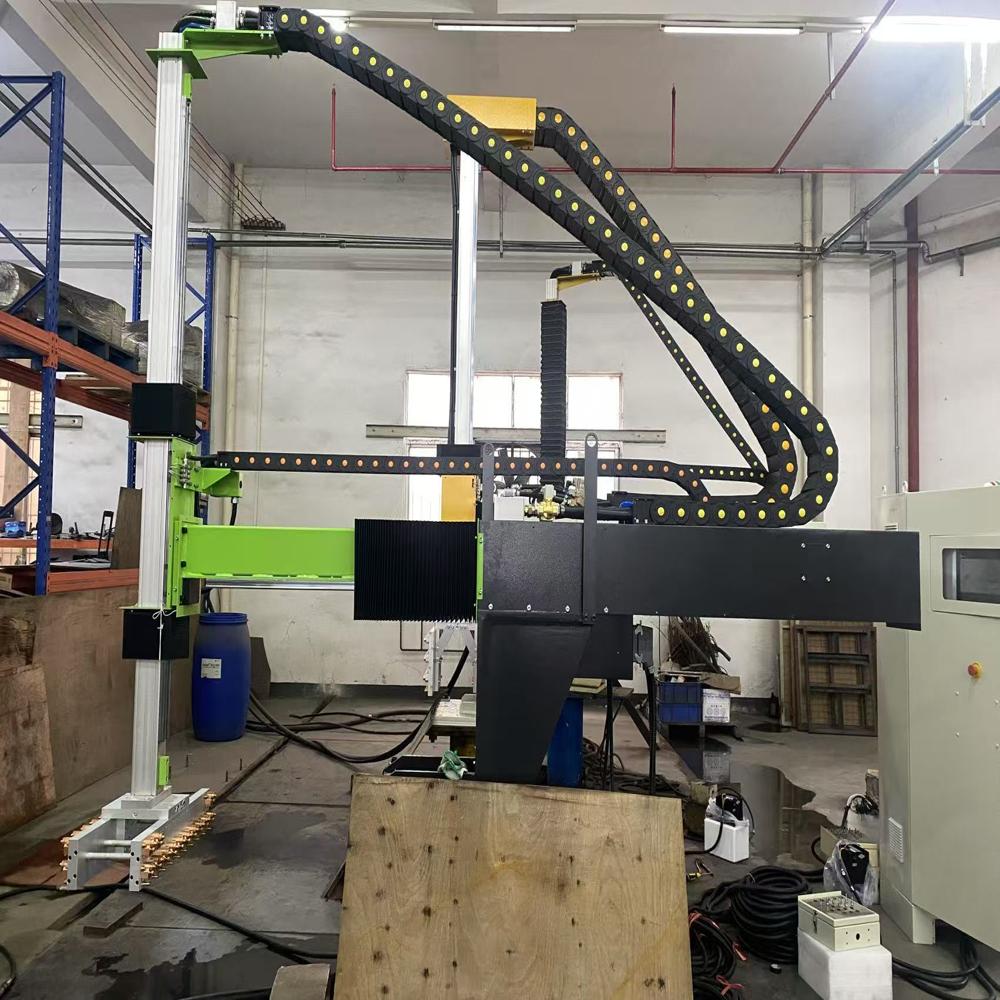

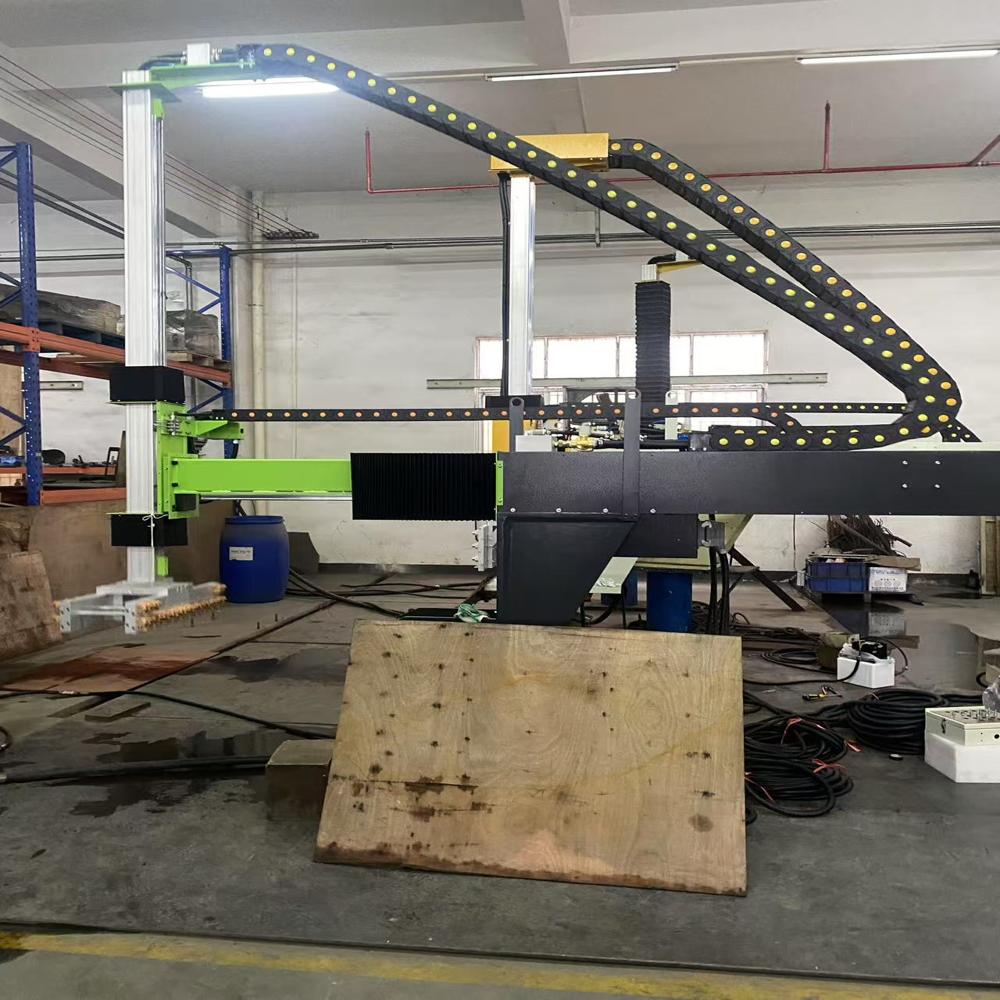

YIZUMI Die Casting Machine Two Axis Servo Sprayer

YIZUMI Die Casting Machine Two Axis Servo Sprayer

Name: YIZUMI Die Casting Machine Two Axis Servo Sprayer
Brand: Foshan Zhenyang Automation Science And Technology Co., Ltd.
Price: 20000.0 USD
Availability: InStock

20000.0 USD ($)/Set

Get a Price/Quote

Product Details:

Noise Level 72 dB
Control System PLC with Touchscreen Interface
Frequency 50/60 Hz
Drive Servo Motor Driven
Cooling System Air Cooled
Production Capacity Continuous, Suited for 24/7 Operations
Operating Temperature 0 - 45C
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

YIZUMI Die Casting Machine Two Axis Servo Sprayer Price And Quantity

Price 20000.0 USD ($)/Set
Minimum Order Quantity 1 Set

Axis Movement Range X: 0-1500 mm, Y: 0-600 mm
Compatibility Suitable for most die casting machines
Mounting Type Floor/Base Plate Mounted
Safety Features Auto-stop, Emergency Button, Fault Detection
Spray Medium Water, Oil, Emulsion based mixtures
User Interface HMI Touch Panel, Multilingual Support
Working Speed 100-300 mm/sec
Cycle Time Adjustable, typically 8 sec/cycle
Maintenance Mode Automatic and Manual
Position Feedback Optical Encoder System
Ambient Humidity 85% RH
Remote Monitoring Optional via IoT module
Spray Pattern Customizable Fan/Straight
Nozzle Quantity Up to 12 programmable nozzles
Installation Service Available upon request

YIZUMI Die Casting Machine Two Axis Servo Sprayer Product Specifications

Production Capacity Continuous, Suited for 24/7 Operations
Operating Temperature 0 - 45C
Machine Type Two Axis Robot Sprayer
Cooling System Air Cooled
Drive Servo Motor Driven
Product Type Two Axis Servo Sprayer
Pressure Adjustable, up to 6 bar
Noise Level 72 dB
Control System PLC with Touchscreen Interface
Frequency 50/60 Hz
Power Source Electric
Power 2.5 kW
Weight (kg) Approx. 430 kg
Lubricating System Automatic
Usage & Applications Die Casting Lubrication in Industrial Environments
Voltage 380 V
Technology Servo Control System
Frame Type Robust Steel Structure
Model No Yizumi 2-Axis SS-400
Dimension (L*W*H) 1500 x 600 x 1700 mm
Motor Power 1.5 kW Servo Motor
Surface Treatment Powder Coated
Power Rating 3 hp
Color Standard Yizumi Green & Grey
Features Servo-driven, Precision Spraying, Programmable Movements, Energy Efficient
Accuracy 0.2 mm
Operating Type Automatic
Connectivity Options Standard I/O, Ethernet (optional)

Axis Movement Range X: 0-1500 mm, Y: 0-600 mm
Compatibility Suitable for most die casting machines
Mounting Type Floor/Base Plate Mounted
Safety Features Auto-stop, Emergency Button, Fault Detection
Spray Medium Water, Oil, Emulsion based mixtures
User Interface HMI Touch Panel, Multilingual Support
Working Speed 100-300 mm/sec
Cycle Time Adjustable, typically 8 sec/cycle
Maintenance Mode Automatic and Manual
Position Feedback Optical Encoder System
Ambient Humidity 85% RH
Remote Monitoring Optional via IoT module
Spray Pattern Customizable Fan/Straight
Nozzle Quantity Up to 12 programmable nozzles
Installation Service Available upon request

YIZUMI Die Casting Machine Two Axis Servo Sprayer Trade Information

FOB Port Foshan
Payment Terms Cash in Advance (CID), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Western Union
Supply Ability 30 Set Per Month
Delivery Time 45 Days
Packaging Details Standard Exporting Package
Main Export Market(s) North America, South America, Eastern Europe, Western Europe, Middle East, Asia, Australia, Central America
Main Domestic Market All India
Certifications CE Certificate

Product Description

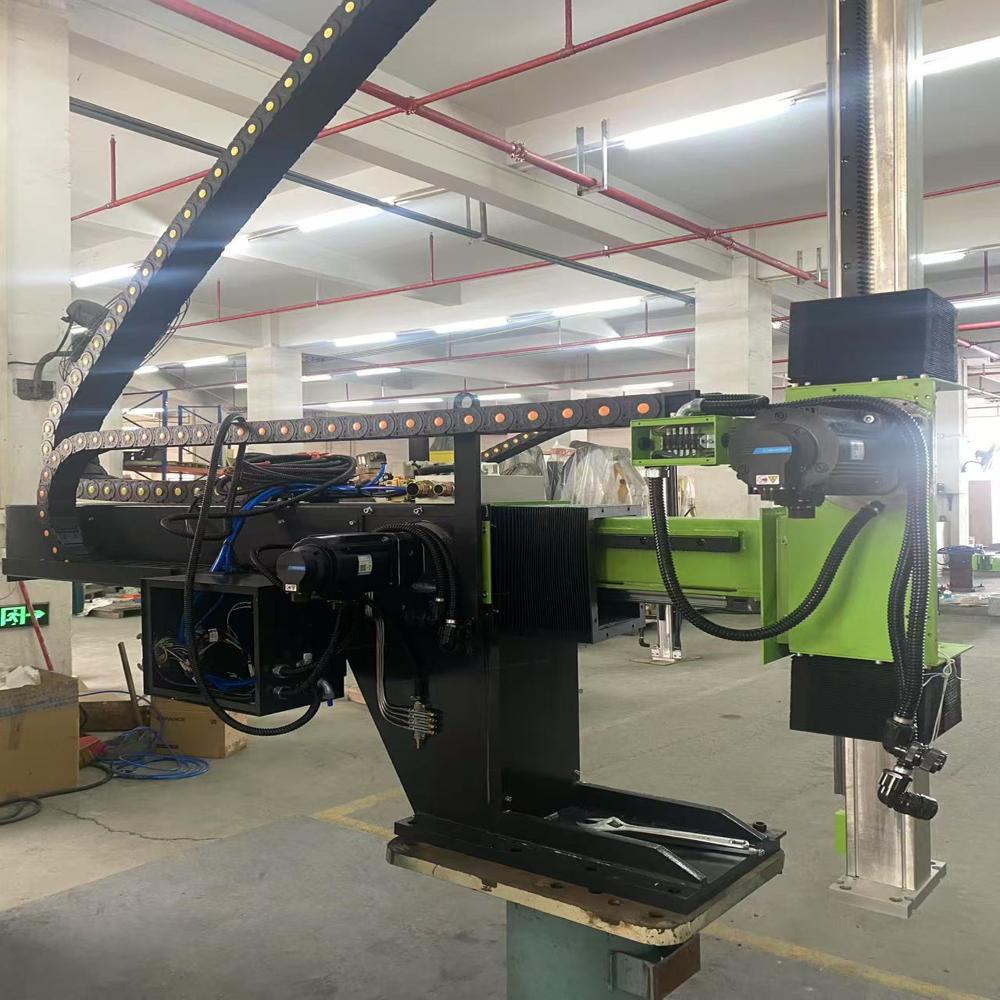

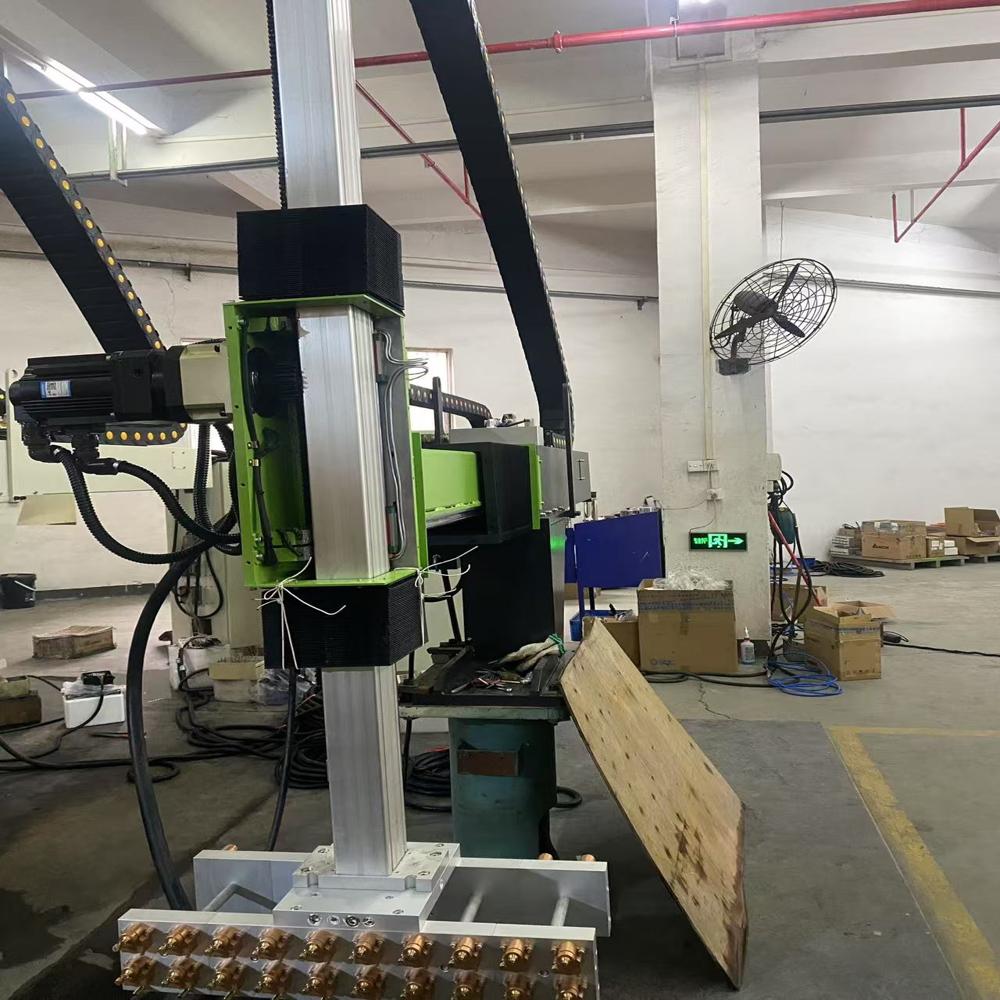

(1)Adopt good quality and high precision guide rail and plated with nickel to improve wear and corrosion resistance.The guide rail covered with protective shield,which is suitable for harsh environment production requirement.

(2)Sprayercouldstop atdifferentposition on X axis and Y axis for part spraying and blowingor reciprocated spraying and blowing.

(3)Driven by Inovance/Schneider servo motor,could start and stop quickly,stably and precisely.

(4)Adopt Mitsubishi PLC and Delta touch screen with stable performance;could supervise every movement,which is convenient for operation and maintenance.

(5)The system is equipped with self diagnosing and failure alarm function for easy removal problems.

High-Speed Precision Spraying

Designed for rapid, continuous operation, the YIZUMI Two Axis Servo Sprayer achieves working speeds between 100 and 300 mm/sec while ensuring position accuracy of up to 0.2 mm. Programmable nozzles and customizable spray patterns optimize lubrication, reducing cycle times and increasing overall productivity in die casting facilities.

Advanced User Interface and Safety

With its HMI touchscreen panel featuring multilingual support, operators can easily control, monitor, and adjust spray parameters. Integrated safety components such as auto-stop, emergency buttons, and fault detection foster a secure working environment, while both automatic and manual maintenance modes simplify upkeep.

Flexible Installation and Wide Compatibility

Mountable via floor or base plate, the SS-400 offers compatibility with most die casting machines. Robust construction, a powder-coated steel frame, and optional remote IoT monitoring make this system adaptable to diverse industrial settings and demanding production schedules.

FAQ's of YIZUMI Die Casting Machine Two Axis Servo Sprayer:

Q: How does the YIZUMI Two Axis Servo Sprayer enhance die casting lubrication processes?

A: Its servo-driven, programmable movements enable precise spray application, minimizing waste and ensuring uniform lubrication. The customizable spray pattern and adjustable nozzles improve coverage, resulting in higher die life and optimized cycle times for industrial production.

Q: What maintenance procedures are recommended and how can they be performed?

A: The sprayer supports both automatic and manual maintenance modes. Routine checks can be managed via the HMI panel, while manual interventions may be required for nozzle cleaning or system calibration. Regular inspection ensures longevity and consistent performance.

Q: When is remote monitoring beneficial for this sprayer, and how is it set up?

A: Remote monitoring is ideal for continuous, high-volume operations or centralized supervision. It is set up by enabling the optional IoT module, connecting the equipment to standard Ethernet. This allows real-time data tracking and alerts for system performance and faults.

Q: Where can the YIZUMI SS-400 sprayer be installed?

A: The sprayer is designed for installation on the shop floor using a base plate. Its flexible mounting and compatibility make it suitable for most die casting machine setups in industrial environments.

Q: What spray mediums are compatible with this equipment?

A: The system supports water, oil, and emulsion-based mixtures, giving users flexibility to match the lubrication requirements of various molds, applications, and casting materials.

Q: How does the automatic lubricating system contribute to operational efficiency?

A: The automated lubricating system reduces manual intervention, ensures consistent lubricant application, and lowers the risk of human error. This supports prolonged, uninterrupted operation and decreases overall maintenance downtime.
