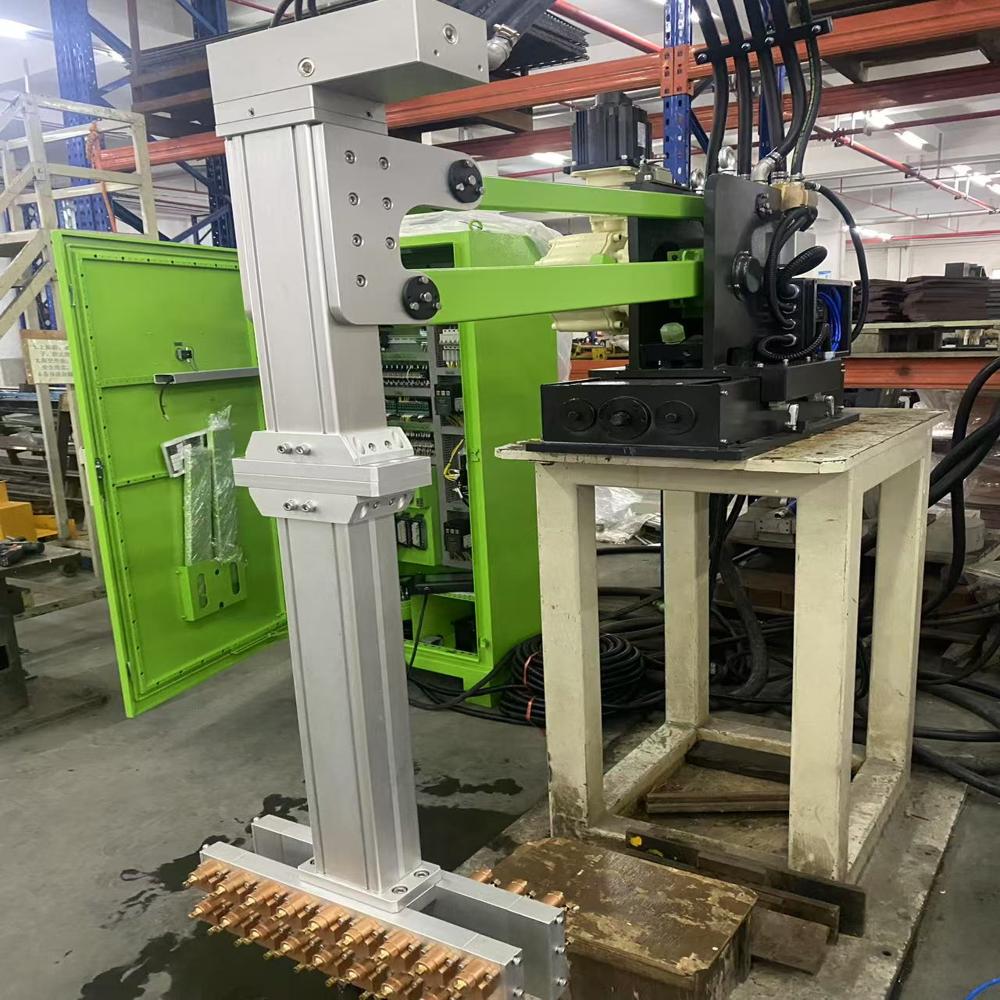

YIZUMI Die Casting Machine Servo Sprayer

YIZUMI Die Casting Machine Servo Sprayer

Name: YIZUMI Die Casting Machine Servo Sprayer
Brand: Foshan Zhenyang Automation Science And Technology Co., Ltd.
Price: 30000.0 USD
Availability: InStock

30000.0 USD ($)/Set

Get a Price/Quote

Product Details:

Frame Type Rigid Welded Frame
Noise Level 65 dB
Model No Servo Sprayer S Series
Lubricating System Automatic Lubrication
Production Capacity Up to 14 cycles/minute
Motor Power 1.5 kW
Power Rating 1.5 kW
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

YIZUMI Die Casting Machine Servo Sprayer Price And Quantity

Price 30000.0 USD ($)/Set
Minimum Order Quantity 1 Set

Interface Type Standard Industrial Connectors
Spray Angle Adjustable (30- 90)
Mounting Type Floor/Frame/Custom
Working Speed Adjustable, 0-100% controllable
Protection Level IP54 Rated
Spray Volume Adjustment Stepless, via HMI
Compatible Die Casting Machines 50T - 2000T
Atomization Method Fine Mist for Uniform Application
Alarm Function Integrated Fault Alarm and Status Display
Maintenance Low maintenance with self-cleaning function
Number of Spraying Sections Independent Dual Sections

YIZUMI Die Casting Machine Servo Sprayer Product Specifications

Cooling System Integrated Cooling Option
Features Servo drive, High repeatability, Uniform spray, Energy saving
Drive Servo Motor Driven
Frequency 50 Hz
Dimension (L*W*H) 1550 x 730 x 1400 mm
Operating Temperature 0C - 45C
Connectivity Options Ethernet/Fieldbus interface (Optional)
Voltage 380V / 50Hz
Power 1.5 kW
Operating Type Automatic
Machine Type Sprayer for Die Casting
Weight (kg) 250 kg
Accuracy High Spray Positioning Accuracy
Surface Treatment Powder Coated
Control System PLC Control with Touch Screen
Lubricating System Automatic Lubrication
Production Capacity Up to 14 cycles/minute
Motor Power 1.5 kW
Power Rating 1.5 kW
Frame Type Rigid Welded Frame
Technology Servo Motor Control
Product Type Servo Sprayer
Usage & Applications Die casting machines, Mold cooling and lubrication
Model No Servo Sprayer S Series
Color YIZUMI Green & Grey
Noise Level 65 dB
Pressure Adjustable, Up to 6 bar
Power Source Electric

Interface Type Standard Industrial Connectors
Spray Angle Adjustable (30- 90)
Mounting Type Floor/Frame/Custom
Working Speed Adjustable, 0-100% controllable
Protection Level IP54 Rated
Spray Volume Adjustment Stepless, via HMI
Compatible Die Casting Machines 50T - 2000T
Atomization Method Fine Mist for Uniform Application
Alarm Function Integrated Fault Alarm and Status Display
Maintenance Low maintenance with self-cleaning function
Number of Spraying Sections Independent Dual Sections

YIZUMI Die Casting Machine Servo Sprayer Trade Information

FOB Port Foshan
Payment Terms Cash Against Delivery (CAD), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Western Union
Supply Ability 60 Set Per Month
Delivery Time 30 Days
Packaging Details Standard Exporting Package
Main Export Market(s) Asia, Australia, Central America, North America, South America, Africa, Eastern Europe, Western Europe, Middle East
Main Domestic Market All India
Certifications CE Certificate

Product Description

YIZUMI Die Casting Machine Servo Sprayer Technological Date

Item	SF-2
Die casting machine tonnage	160-400T
Front-left fixed mould sprayer head	4pcs
Front-mid fixed mould sprayer head	5pcs
Front-right fixed mould sprayer head	4pcs
Rear-left moving mould sprayer head	4pcs
Rear-mid moving mould sprayer head	5pcs
Rear-right moving mould sprayer head	4pcs
Front-back blowing tube	30 pcs
Sprayer head width	430mm
Sprayer head thickness	220mm
Air pressure	5-6bar
Air pressure inlet	PT1"
Release Agent Pressure	5.5-6.5kgf/cm
Ascending time	0.8s
Descending time	0.8s
Base motor power	180w
Ascending and descending motor power	1kw

Features:

1.Driven by high quality reduction gear with high machanical strength,stability and long service life.

2.Could stop at different Y axis position for spraying and blowing

3.Y axis driven by Delta servo motor;could start and stop quickly,stably and precisely

4.Module sprayer with good atomization effect

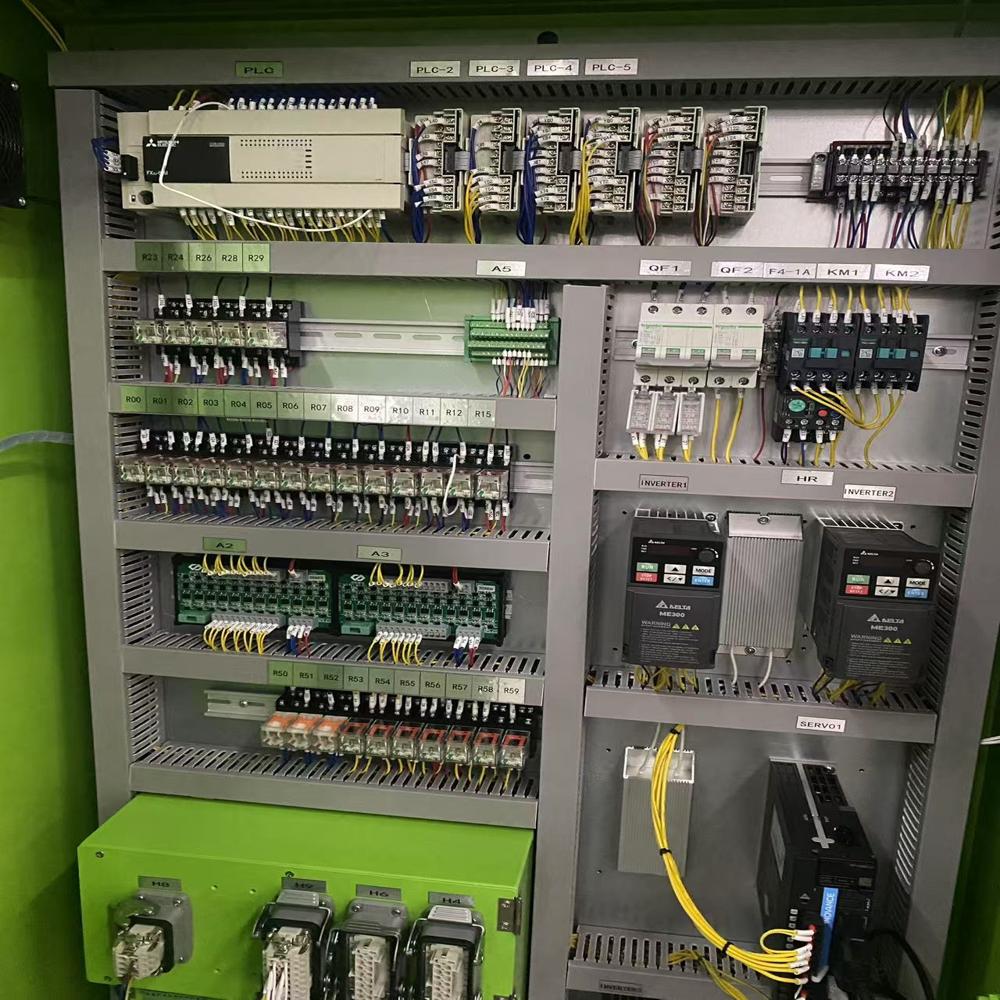

5.Adopt Mitsubishi PLC and Delta touch screen with stable performance;could supervise every movement,which is convenient for operation and maintenance.

6.The system is equipped with self diagnosing and failure alarm function for easy removal problems.

Precision and Flexibility in Spraying

The YIZUMI Servo Sprayer S Series provides highly customizable spray speed and angles, ranging from 30 to 90, ensuring uniform lubricant application for various mold sizes. The independent dual sections and adjustable settings offer complete control directly via an intuitive HMI, supporting high accuracy and repeatability in spray positioning.

Robust Construction and Maintenance Ease

Crafted with a rigid welded frame and powder-coated surface, this sprayer is durable and built for industrial longevity. The self-cleaning feature significantly reduces maintenance needs, while the IP54 protection shields the unit from dust and water ingress. Integrated alarms promptly alert operators to faults, enhancing operational reliability.

Seamless Integration and Operation

YIZUMI's Servo Sprayer easily interfaces with most die casting machines (50T-2000T) via standard industrial connectors and offers optional Ethernet/Fieldbus support. Its PLC control system with a touch screen simplifies operation, adjustment, and monitoring, making it an adaptable solution for diverse foundry environments.

FAQ's of YIZUMI Die Casting Machine Servo Sprayer:

Q: How does the YIZUMI Servo Sprayer ensure uniform application of mold release agents?

A: The sprayer utilizes a fine mist atomization method and offers adjustable spray angles (30-90) with independent dual sections. This setup produces a consistent and even coat over the mold surface, maximizing coverage while avoiding overspray or buildup.

Q: What is the process for adjusting spray volume and pressure?

A: Operators can steplessly adjust spray volume via the HMI touch screen for precise control. Pressure is also adjustable up to 6 bar, allowing for tailored operation based on die casting requirements, ensuring flexibility across different applications.

Q: Where can the Servo Sprayer S Series be mounted?

A: The unit supports flexible mounting on the floor, frame, or custom setups, adapting to a variety of production lines and machine configurations for optimal integration.

Q: When is maintenance required and how often should it be performed?

A: Routine maintenance intervals are minimized thanks to the self-cleaning mechanism and automatic lubrication. Visual status displays and integrated alarms notify operators of any required maintenance, ensuring continued reliable operation.

Q: What are the benefits of the integrated fault alarm and status display?

A: The built-in alarm function instantly alerts users to faults or irregularities. The status display provides real-time operational updates, helping operators respond quickly and minimize machine downtime.

Q: How does the Servo Sprayer S Series integrate with die casting machines?

A: It connects seamlessly using standard industrial connectors, and can optionally interface via Ethernet or Fieldbus. Compatible with die casting machines ranging from 50 to 2000 tons, it supports a variety of automated production environments.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Die Casting Machine Servo Sprayer' category

Die Casting Machine Two Axis Servo Sprayer Minimum Order Quantity : 1 Frame Type : Rigid Steel Frame Technology : Other, Servo Motor Driven Product Type : Other, Two Axis Servo Sprayer Usage & Applications : Die Casting Machine Lubrication Color : Blue/Grey Noise Level : <70 dB Pressure : 0.40.6 MPa Model No : DS2AX Power Source : Other, Electric Lubricating System : Automatic Spraying Production Capacity : Up to 25 cycles/min Motor Power : 1.5 kW Power Rating : 2.5 kW Frequency : 50/60 Hz Operating Temperature : 5C45C Dimension (L*W*H) : 1200 x 800 x 1700 mm Connectivity Options : PLC Communication Port Voltage : 220/380 V Power : 2.5 kW Machine Type : Servo Sprayer Operating Type : Automatic Surface Treatment : Other, Powder Coated Accuracy : 0.1 mm Weight (kg) : 350 kg Control System : Other, PLC Control Cooling System : Air Cooling Features : Servocontrolled, program memory, quick die change support, stable operation Drive : Servo Motor

Send Inquiry

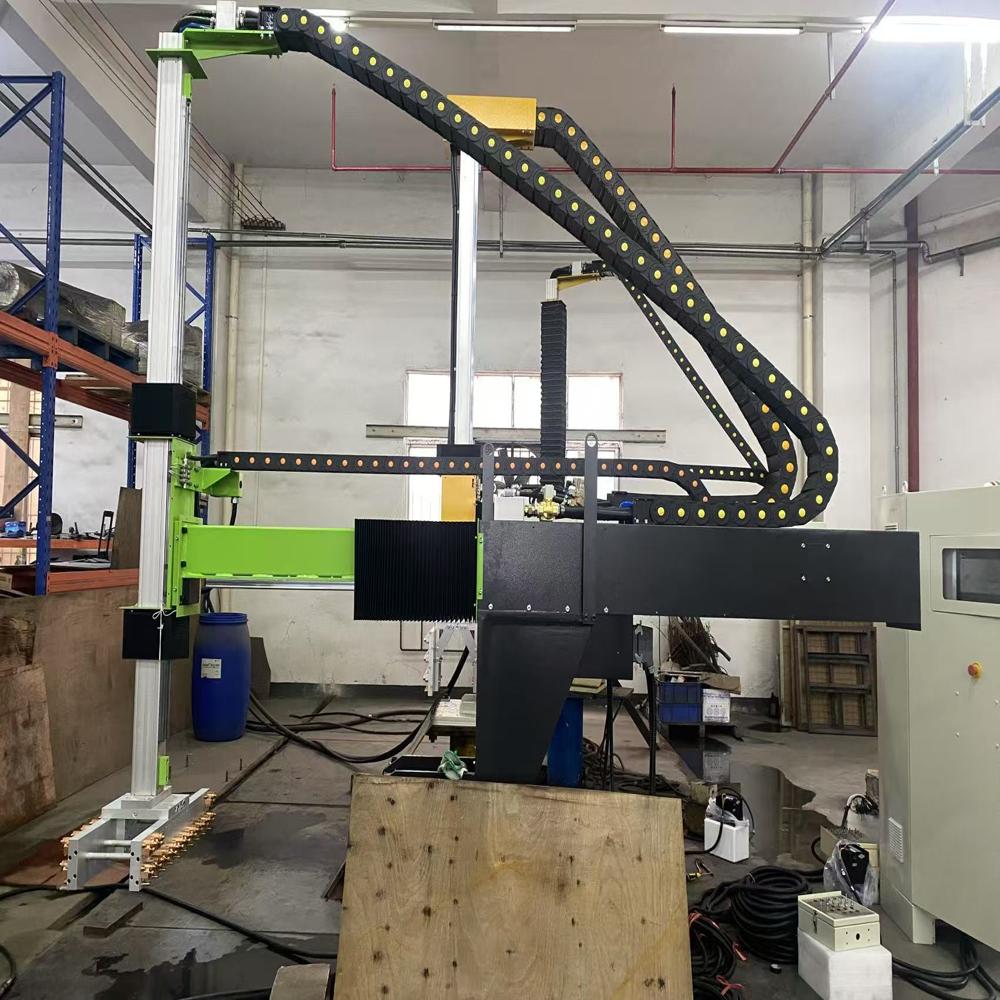

YIZUMI Die Casting Machine Two Axis Servo Sprayer Price : 20000.0 USD ($)/Set Minimum Order Quantity : 1 Frame Type : Robust Steel Structure Technology : Other, Servo Control System Product Type : Other, Two Axis Servo Sprayer Usage & Applications : Die Casting Lubrication in Industrial Environments Color : Standard Yizumi Green & Grey Noise Level : 72 dB Pressure : Adjustable, up to 6 bar Model No : Yizumi 2Axis SS400 Power Source : Other, Electric Lubricating System : Automatic Production Capacity : Continuous, Suited for 24/7 Operations Motor Power : 1.5 kW Servo Motor Power Rating : 3 hp Frequency : 50/60 Hz Operating Temperature : 0 45C Dimension (L*W*H) : 1500 x 600 x 1700 mm Connectivity Options : Standard I/O, Ethernet (optional) Voltage : 380 V Power : 2.5 kW Machine Type : Two Axis Robot Sprayer Operating Type : Automatic Surface Treatment : Other, Powder Coated Accuracy : 0.2 mm Weight (kg) : Approx. 430 kg Control System : Other, PLC with Touchscreen Interface Cooling System : Air Cooled Features : Servodriven, Precision Spraying, Programmable Movements, Energy Efficient Drive : Servo Motor Driven
