YIZUMI Die Casting Machine Aluminium Electric Melting Furnace

YIZUMI Die Casting Machine Aluminium Electric Melting Furnace

Name: YIZUMI Die Casting Machine Aluminium Electric Melting Furnace
Brand: Foshan Zhenyang Automation Science And Technology Co., Ltd.
Price: 6000.0 USD
Availability: InStock

6000.0 USD ($)/Set

Get a Price/Quote

Product Details:

Connectivity Options Remote Monitoring/Control optional
Machine Type Induction Type Furnace
Frame Type Robust Steel Frame
Lubricating System Centralized Lubrication
Accuracy 2C Temperature Control
Noise Level 75 dB
Voltage 380V/415V/440V
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

YIZUMI Die Casting Machine Aluminium Electric Melting Furnace Price And Quantity

Minimum Order Quantity 1 Set
Price 6000.0 USD ($)/Set

Charging Mode Automatic/Manual Bucket
Display Type Digital Temperature Display
Safety Features Overheat Protection, Emergency Stop
Suitable Metals Aluminium, Zinc Alloys
Environmental Compliance Meets CE Standards
Crucible Capacity Variable (300-1500 kg)
Melting Efficiency Greater than 95%
Power Consumption Average 650 kWh/ton
Insulation Layer Multiple Layer Advanced Thermal Insulation
Door Opening Mechanism Electric or Hydraulic
Furnace Lining Material High-Grade Refractory Bricks
Operator Panel Touch Screen HMI

YIZUMI Die Casting Machine Aluminium Electric Melting Furnace Product Specifications

Weight (kg) Approx. 1500-2500 kg (varies by model)
Usage & Applications Aluminium melting for die casting industry
Model No YIZUMI YZ-EMF Series
Color Industrial Grey & Green
Operating Type Automatic
Operating Temperature Up to 900C
Control System PLC/Manual Option
Motor Power 5-20 HP
Power Rating Three Phase, 380-440V
Technology Die Casting Furnace
Surface Treatment Anti-Corrosion Coated
Pressure Standard Atmospheric
Features Energy Efficient, Fast Heating, Thermal Insulation
Dimension (L*W*H) Customizable / standard sizes available
Power Source Electric
Frequency 50/60 Hz
Drive Electric Drive
Noise Level 75 dB
Voltage 380V/415V/440V
Product Type Aluminium Electric Melting Furnace
Production Capacity 1500 kg/hour max
Power 20-60 kW (depending on model)
Cooling System Water Cooling or Air Cooling Optional
Connectivity Options Remote Monitoring/Control optional
Machine Type Induction Type Furnace
Accuracy 2C Temperature Control
Lubricating System Centralized Lubrication
Frame Type Robust Steel Frame

Charging Mode Automatic/Manual Bucket
Display Type Digital Temperature Display
Safety Features Overheat Protection, Emergency Stop
Suitable Metals Aluminium, Zinc Alloys
Environmental Compliance Meets CE Standards
Crucible Capacity Variable (300-1500 kg)
Melting Efficiency Greater than 95%
Power Consumption Average 650 kWh/ton
Insulation Layer Multiple Layer Advanced Thermal Insulation
Door Opening Mechanism Electric or Hydraulic
Furnace Lining Material High-Grade Refractory Bricks
Operator Panel Touch Screen HMI

YIZUMI Die Casting Machine Aluminium Electric Melting Furnace Trade Information

FOB Port FOB Guangzhou
Payment Terms Letter of Credit at Sight (Sight L/C), Cash Against Delivery (CAD), Telegraphic Transfer (T/T), Western Union
Supply Ability 60 Set Per Month
Delivery Time 25 Days
Sample Available No
Sample Policy Sample costs shipping and taxes has to be paid by the buyer
Packaging Details Standard Exporting Package
Main Export Market(s) Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
Main Domestic Market All India
Certifications CE Certificate

Product Description

YIZUMI Die Casting Machine Aluminium Electric Melting Furnace

Model	Capacity	Crucible Size	Melting Speed	Maximum Power
AL-300KG	300KG	650*650mm	60-80KG/H	60KW
AL-400KG	400KG	720*730mm	100-120KG/H	75KW
AL-500KG	500KG	780*750mm	120-150KG/H	90KW
AL-600KG	600KG	880*750mm	150-180KG/H	110KW
AL-800KG	800KG	880*1000mm	180-200KG/H	130KW
AL-1000KG	1000KG	900*1150mm	220-280KG/H	130-150KW

(1) Adopt high quality thermocouple to detect furnace chamber and aluminium liquid temperature,

which is convenient for operation and maintenance

(2) Install high quality heating element inside furnace chamber,the heating is even and quick

(3) Equip material leakage alarm function;if crucible broken and material leakage;system will alarm and stop heating.

(4) The low heat conduction insulating brick and high purity insulation brick,which could reduce heat loss effectively.

Unmatched Energy Efficiency and Performance

Designed for industrial applications, the YIZUMI YZ-EMF Series achieves over 95% melting efficiency and operates with an average power consumption of just 650 kWh per ton. With a production capacity of up to 1500 kg/hour and an operating temperature ceiling of 900C, this furnace ensures rapid, reliable melting for aluminium and zinc alloys, bolstered by anti-corrosion surface treatment for longevity.

Advanced Control and Safety Mechanisms

Precise, convenient operation is assured with a digitally displayed temperature panel and a touch screen HMI. The system utilizes PLC or manual control for flexible management, while built-in overheat protection, emergency stop, and multiple thermal insulation layers ensure operator safety and optimal heat retention throughout the melting process. Remote monitoring and centralized lubrication enhance automation and reliability.

Customizable Design and Environmental Compliance

Offering customizable dimensions and model options, the YIZUMI furnace fits various production environments. With robust steel construction, several door opening mechanisms (electric or hydraulic), and compliance with CE standards, it serves as a sustainable and adaptable solution, catering to the evolving needs of manufacturers, exporters, and suppliers.

FAQ's of YIZUMI Die Casting Machine Aluminium Electric Melting Furnace:

Q: How does the YIZUMI Die Casting Furnace enhance melting efficiency?

A: The YIZUMI Die Casting Furnace employs high-grade refractory bricks, advanced thermal insulation, and induction heating technology to achieve a melting efficiency greater than 95%. Its design minimizes heat loss, enabling rapid and energy-efficient aluminium or zinc alloy melting.

Q: What safety features are integrated into the furnace?

A: For reliable industrial use, the furnace includes overheat protection, an emergency stop function, multiple layers of thermal insulation, and a digital temperature display. These safeguards ensure safe operation, reducing risks for operators.

Q: When should I choose electric or hydraulic door opening mechanisms?

A: The choice depends on your workflow preferences and automation level. Electric opening offers easy, remote-controlled access, while hydraulic systems provide powerful, smooth operation ideal for frequent or heavy-duty opening cycles.

Q: Where can this furnace be installed, and are dimensions customizable?

A: The YIZUMI furnace is suited to die casting facilities, foundries, and metalworking plants. Customizable dimensions and standard sizes accommodate varied installation requirements, ensuring compatibility with different production layouts.

Q: What is the typical process for melting aluminium in this furnace?

A: Raw aluminium is charged automatically or manually into the crucible. With precise temperature control via PLC/manual modes and digital display, the furnace quickly melts the metal. Operators can utilize remote control and monitor safety features during the process.

Q: How does the insulation system benefit daily operation?

A: Multiple layers of advanced thermal insulation maintain stable internal temperatures, optimize energy usage, and reduce external heat loss. This not only boosts melting efficiency but also makes the working environment safer for operators.

Q: What advantages does the touch screen HMI provide for operators?

A: The user-friendly touch screen HMI simplifies operation, allowing for easy parameter adjustments and real-time monitoring. It enhances process visibility, ensuring more accurate and efficient control of the melting process.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Aluminium Melting Furnace' category

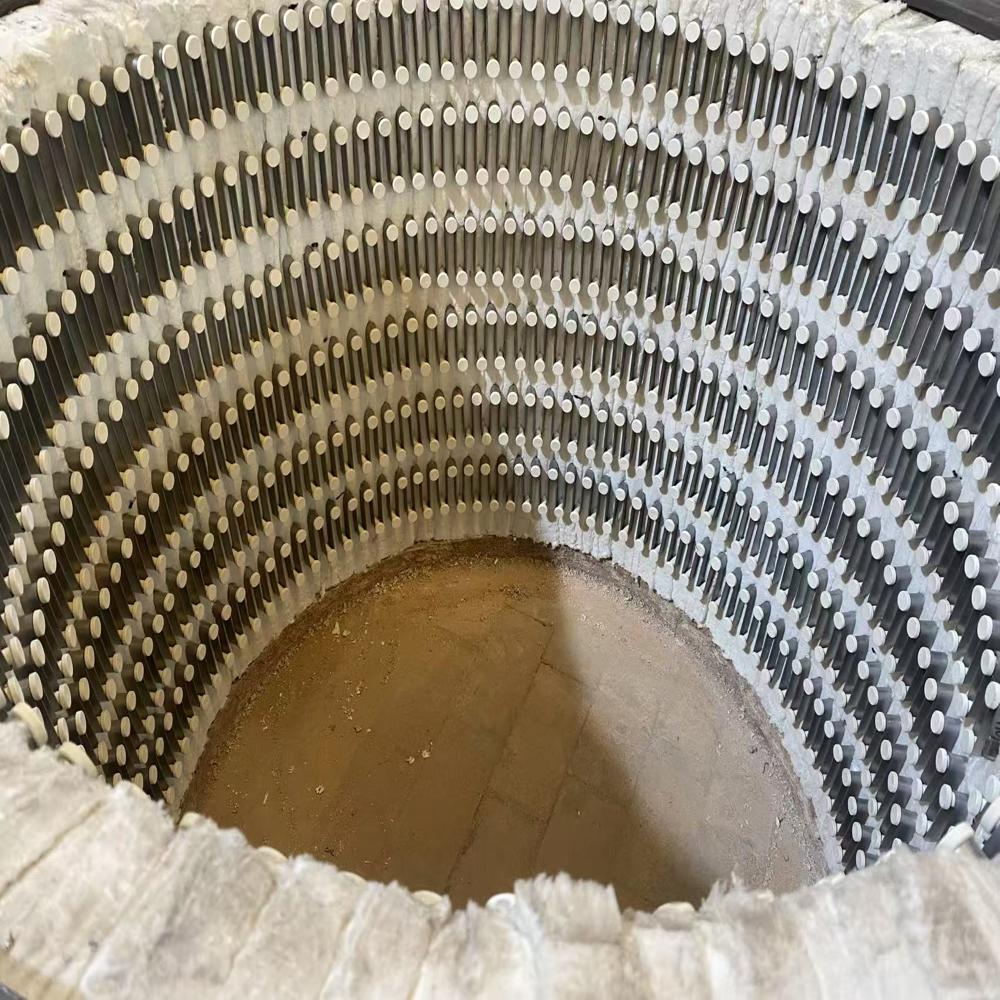

YIZUMI Die Casting Machine Electric Furnace Heating Element Price : 500.0 USD ($)/Piece Minimum Order Quantity : 1 Color : Silver/Grey Operating Type : Automatic Weight (kg) : Varies by Model Usage & Applications : Heating of Furnace in Die Casting Machines Power Source : Other, Electric Dimension (L*W*H) : Standard/Custom Sizes Technology : Other, Resistance Heating Surface Treatment : Other, Rust Resistant Coating Production Capacity : High/Continuous Operation Product Type : Other, Heating Element Power : Customized (Depending on Model)
