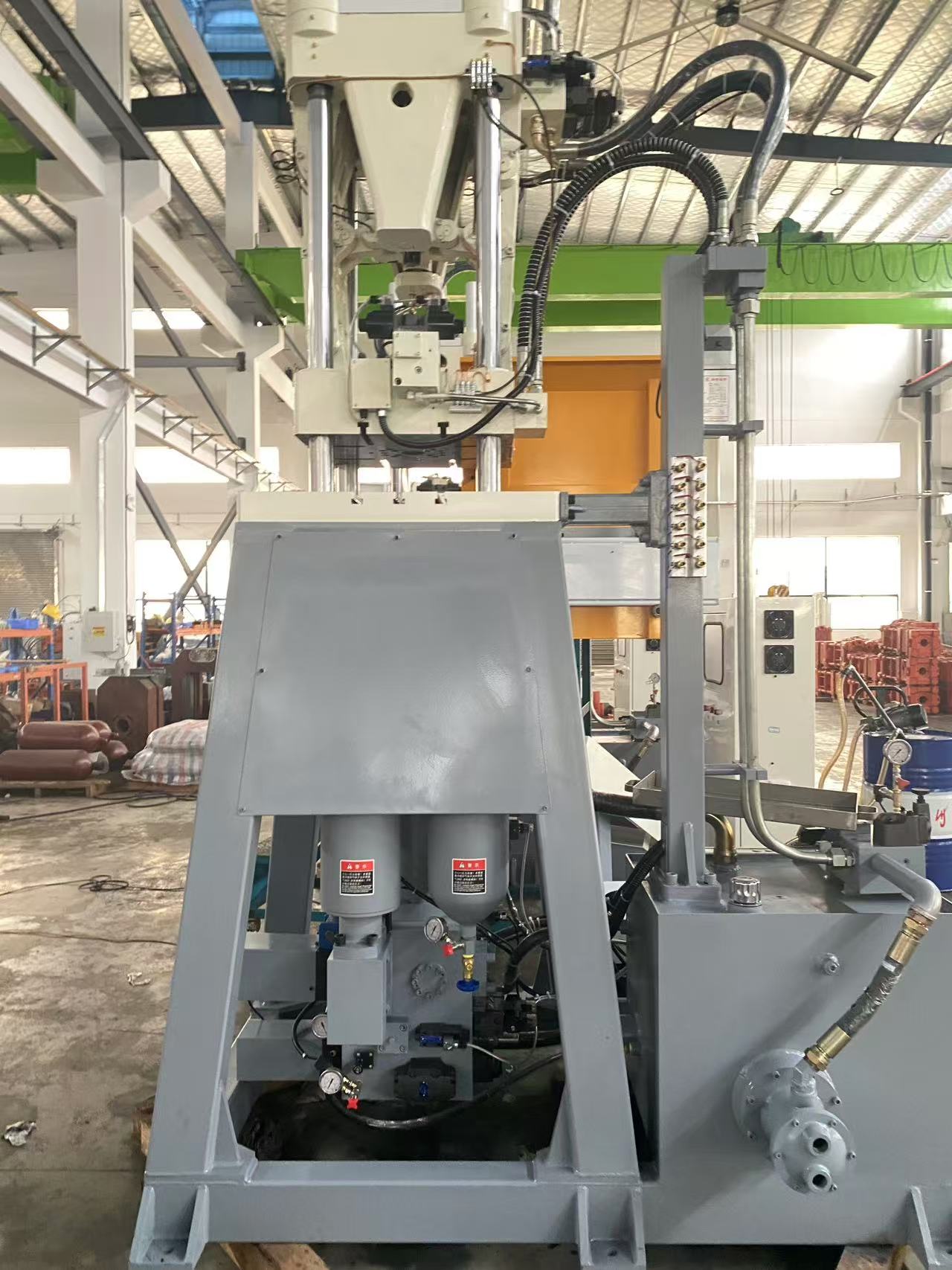

Vertical Die Casting Machine

Name: Vertical Die Casting Machine
Brand: Foshan Zhenyang Automation Science And Technology Co., Ltd.
Price: 35000.0 USD
Availability: InStock

35000.0 USD ($)

Get a Price/Quote

Product Details:

Voltage 380 V
Lubricating System Automatic Centralized Lubrication
Production Capacity 65-80 shots per hour
Drive Hydraulic
Cooling System Water Cooled
Motor Power 15 HP
Model No VDC-400
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Vertical Die Casting Machine Price And Quantity

Minimum Order Quantity 1 Unit
Price 35000.0 USD ($)

Vertical Die Casting Machine Product Specifications

Frequency 50 Hz
Frame Type Monoblock Heavy-Duty Frame
Connectivity Options Optional Ethernet/USB interface
Features Energy Efficient, Heavy Duty Construction, High Precision, Safety Interlocks
Power Rating 15 kW
Machine Type Hydraulic Vertical Die Casting Machine
Technology Advanced Hydraulic Die Casting
Surface Treatment Coated / Painted
Control System PLC Control Panel
Usage & Applications Used for casting aluminum, zinc, and other non-ferrous metal components
Accuracy ±0.02 mm
Operating Temperature 5°C to 45°C
Power 15 kW
Dimension (L*W*H) 2200 x 1500 x 2500 mm
Noise Level < 75 dB
Motor Power 15 HP
Color Blue / Grey
Weight (kg) 4200 kg
Cooling System Water Cooled
Model No VDC-400
Product Type Vertical Die Casting Machine
Power Source Electric
Voltage 380 V
Production Capacity 65-80 shots per hour
Lubricating System Automatic Centralized Lubrication
Pressure High Pressure (100-250 bar)
Drive Hydraulic

Hydraulic Oil Capacity 450 liters
Clamping Force 400-500 tons
Cycle Time 15-20 seconds per shot
Max Mold Opening Distance 650 mm
Operator Interface Touchscreen HMI Display
Safety Features Emergency Stop, Mold Safety, Overpressure Alarm
Casting Material Aluminum, Zinc, Magnesium Alloys
Optional Attachments Vacuum System, Core Puller, Conveyor System
Injection Stroke 350 mm
Maintenance Low Maintenance Design with Easy Access Panels
Min Mold Thickness 200 mm
Shot Weight Up to 6 kg (Aluminum)
Heater Control PID Precision Heater Control
Ejector Force 80 kN

Vertical Die Casting Machine Trade Information

FOB Port Guangzhou
Payment Terms Cash on Delivery (COD), Cash in Advance (CID), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Western Union, Letter of Credit (L/C)
Supply Ability 1500 Unit Per Year
Delivery Time 35 Days
Packaging Details Standard Exporting Package
Main Export Market(s) Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
Main Domestic Market All India
Certifications CE Certificate

Product Description

High quality and wear resistance thicken casting platen adopts finite element analysis design that brings even stress distribution without distortion.

High tensile thicken chrom plated tie bar is more sturdy and durable.

Intergrated injection system without floating pistion design,which is more reliable and durable.

Excellent injection performance;maximum air injection speedcouldreach8-9.5m/s,pressure build up timeis less than15m/s;switching time from slow speed to high speed is shorten obviously,which can satisfy different die casting parts production requirement.

Double proportional valve control system pressure and flow, with multistage pressure and speed control and lowpressure die close protection function.

Good quality high and low pressure pump with high performance and low noise,saves energy and improves production efficiency.

Adopts automatic concentrated lubrication system,improves service life of the machines and decreases repair times

Adopt Omron,Siemens computer control system with stable performance and high precision,could control and supervise every movement date and status,which is convenient for operation and maintenance.

The system is equipped with self diagnosing and failure alarm function for easy removal problems.

Efficient and High-Precision Casting

The VDC-400 Vertical Die Casting Machine combines high clamping force and precision injection stroke to achieve consistent, accurate casts. Its automatic or semi-automatic operation streamlines workflows, enabling rapid production cycles (15-20 seconds per shot) while ensuring minimal scrap rates through precise process control and PID heater regulation. This makes it effective for high-volume, quality-driven applications.

Advanced Safety and User Interface

Operator safety and ease of use are at the forefront with integrated emergency stop features, mold safety mechanisms, and alarms for overpressure. The touchscreen HMI display allows intuitive, direct control over machine settings. Maintenance is simplified with easily accessible panels and centralized lubrication, reducing downtime and prolonging machine life.

FAQ's of Vertical Die Casting Machine :

Q: How does the VDC-400 Vertical Die Casting Machine ensure high casting accuracy?

A: The VDC-400 uses precise PLC control, advanced hydraulic systems, and PID heater regulation to consistently maintain casting tolerances of 0.02 mm for aluminum, zinc, and magnesium alloy components.

Q: What materials can be processed with this die casting machine?

A: This machine is suitable for casting non-ferrous metals, specifically aluminum, zinc, and magnesium alloys, making it versatile for a variety of industrial applications.

Q: When should I consider using an optional vacuum system or core puller?

A: Optional attachments like the vacuum system are beneficial for improving casting quality and reducing porosity. The core puller is recommended for complex mold designs requiring movable cores for intricate-shaped parts.

Q: Where is this machine commonly used?

A: The VDC-400 is widely utilized in automotive, electrical, and industrial manufacturing sectors for producing precise, high-strength non-ferrous metal components.

Q: What maintenance features does the VDC-400 offer?

A: The machine is designed for low maintenance, featuring easy access panels, an automatic centralized lubrication system, and robust construction to facilitate straightforward servicing and minimal downtime.

Q: How does the operator interface simplify usage?

A: A user-friendly touchscreen HMI allows operators to easily configure settings, monitor cycle times, and manage production data. Optional Ethernet/USB interfaces add connectivity for modern production environments.

Q: What are the operational benefits of using this machine?

A: With rapid cycle times, high efficiency, energy-saving features, and comprehensive safety interlocks, the VDC-400 enhances productivity, reduces energy consumption, and maintains a safe working environment for operators.
