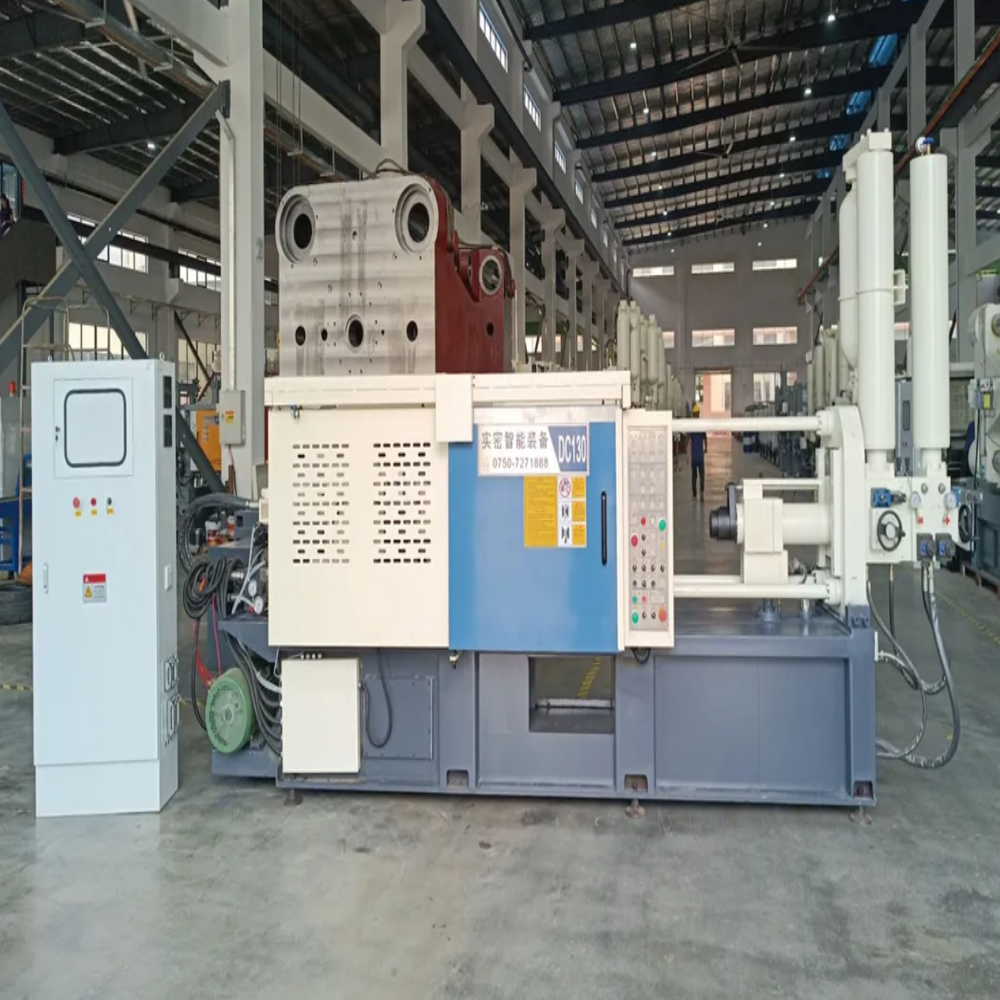

130T Cold Chamber Die Casting Machine

Name: 130T Cold Chamber Die Casting Machine
Brand: Foshan Zhenyang Automation Science And Technology Co., Ltd.
Price: 30000.0 USD
Availability: InStock

30000.0 USD ($)/Set

Get a Price/Quote

Product Details:

Power Rating 11 kW
Plastic Processed N/A (Non-plastic Die Casting)
Motor Power 11 kW Main Motor
Control System PLC Controlled
Noise Level 80 dB
Drive Hydraulic
Connectivity Options Standard Interfaces (Optional) RS232/USB
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

130T Cold Chamber Die Casting Machine Price And Quantity

Minimum Order Quantity 1 Set
Price 30000.0 USD ($)/Set

Maintenance Easy Access Doors and Panels
Shot Sleeve Length 650 mm
Service Support On-site Installation & Training
Hydraulic System Pressure 14 MPa
Operator Interface Digital Touchscreen (HMI Optional)
Optional Attachments Automatic Ladle, Extractor, Sprayer
Injection Position Adjustable
Die Locking Stroke 350 mm
Casting Product Weight Max 1.8 kg (Aluminum)
Ejector Stroke 90 mm
Ambient Environment Dust and Vibration Resistant Design
Tie Bar Distance (H x V) 420 x 420 mm
Minimum Mold Thickness 200 mm
Environmental Compliance Meets International Die Casting Safety Standards
Safety Devices Mechanical & Electrical Interlocks, Emergency Stop
Maximum Mold Thickness 500 mm
Cycle Time Minimum 12-20 seconds
Hydraulic Oil Tank Capacity 450 Liters
Plunger Diameter 40 / 50 mm
Pump Type High Efficiency Gear Pump
Ejector Force 65 kN
Injection Force 110 kN

130T Cold Chamber Die Casting Machine Product Specifications

Model No 130T
Production Capacity Up to 250 shots/hour
Connectivity Options Standard Interfaces (Optional) RS232/USB
Usage & Applications Aluminum, Zinc, Copper Alloy Casting
Drive Hydraulic
Power Source Electric
Noise Level 80 dB
Surface Treatment Paint Coated
Control System PLC Controlled
Power Rating 11 kW
Operating Type Semi-Automatic
Motor Power 11 kW Main Motor
Plastic Processed N/A (Non-plastic Die Casting)
Cooling System Water Cooled
Product Type Cold Chamber Die Casting Machine
Operating Temperature 5C - 45C
Frame Type H-Type, Rigid
Dimension (L*W*H) 4300 x 1200 x 2200 mm
Technology Die Casting
Accuracy High Dimensional Precision
Frequency 50/60 Hz
Power 11 kW
Voltage 380 V / 415 V, 3 Phase
Features Energy Efficient, Rugged Construction, Rapid Cycling
Pressure 1300 kN (130 Tons) Clamping Force
Machine Type Cold Chamber
Color Industrial Green / Custom
Lubricating System Centralized/Automatic
Weight (kg) 5800 kg

Maintenance Easy Access Doors and Panels
Shot Sleeve Length 650 mm
Service Support On-site Installation & Training
Hydraulic System Pressure 14 MPa
Operator Interface Digital Touchscreen (HMI Optional)
Optional Attachments Automatic Ladle, Extractor, Sprayer
Injection Position Adjustable
Die Locking Stroke 350 mm
Casting Product Weight Max 1.8 kg (Aluminum)
Ejector Stroke 90 mm
Ambient Environment Dust and Vibration Resistant Design
Tie Bar Distance (H x V) 420 x 420 mm
Minimum Mold Thickness 200 mm
Environmental Compliance Meets International Die Casting Safety Standards
Safety Devices Mechanical & Electrical Interlocks, Emergency Stop
Maximum Mold Thickness 500 mm
Cycle Time Minimum 12-20 seconds
Hydraulic Oil Tank Capacity 450 Liters
Plunger Diameter 40 / 50 mm
Pump Type High Efficiency Gear Pump
Ejector Force 65 kN
Injection Force 110 kN

130T Cold Chamber Die Casting Machine Trade Information

FOB Port Guangzhou
Payment Terms Cash in Advance (CID), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Western Union
Supply Ability 30 Set Per Month
Delivery Time 30 Days
Sample Available No
Packaging Details Standard Exporting Package
Main Export Market(s) Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
Main Domestic Market All India
Certifications CE Certificate

Product Description

High quality and wear resistance thicken casting platen adopts finite element analysis design that brings even stress distribution without distortion.

High tensile thicken chrom plated tie bar is more sturdy and durable.

Intergrated injection system without floating pistion design,which is more reliable and durable.

Excellent injection performance;maximum air injection speed could reach 8-9.5m/s,pressure build up time is less than 15m/s;switching time from slow speed to high speed is shorten obviously,which can satisfy different die casting parts production requirement.

Double proportional valve control system pressure and flow, with multi stage pressure and speed control and low pressure die close protection function.

Good quality high and low pressure pump with high performance and low noise,saves energy and improves production efficiency.

Adopts automatic concentrated lubrication system,improves service life of the machines and decreases repair times

Adopt Omron,Siemens computer control system with stable performance and high precision,could control and supervise every movement date and status,which is convenient for operation and maintenance.

The system is equipped with self diagnosing and failure alarm function for easy removal problems.

Precision and Productivity

Designed for consistent high-quality output, the 130T Cold Chamber Die Casting Machine delivers superior dimensional accuracy and rapid cycling for up to 250 castings per hour. Its high-efficiency gear pump and 11 kW main motor combine energy saving with powerful performance, making it a reliable solution for demanding environments.

User-Friendly Operation

The machine is equipped with a digital touchscreen interface for straightforward operation. Optional HMI controls further enhance process management and fine-tuning. Routine maintenance is streamlined by easy-access panels and centralized/automatic lubrication, reducing downtime and supporting continuous production shifts.

Robust Design and Safety

Built with an H-type rigid frame and advanced safety interlocks, the 130T model ensures stable operation under harsh ambient conditions. Its design adheres to international safety standards, with emergency stops and environmental protections for dust and vibration, safeguarding both operators and workspace integrity.

FAQ's of 130T Cold Chamber Die Casting Machine:

Q: How does the 130T Cold Chamber Die Casting Machine ensure high dimensional precision in casting?

A: The machine utilizes a PLC-controlled hydraulic system, computerized injection control, and adjustable injection position to achieve superior accuracy. Its rigid frame and high clamping force minimize deformation, ensuring consistent product dimensions every cycle.

Q: What is the typical process for using this die casting machine in aluminum alloy casting?

A: The process involves feeding molten aluminum into the cold chamber, then using the plunger mechanism to inject metal into a die under controlled high pressure. The adjustable injection and rapid cycle features allow for efficient, high-volume part production.

Q: When is maintenance recommended for optimal performance?

A: While the system features automated lubrication and maintenance-friendly access doors and panels, it is advised to perform routine checks after every production shift and schedule professional servicing as recommended in the manufacturer's guidelines to ensure longevity and reliability.

Q: Where can the 130T die casting machine be installed, and what are the environmental requirements?

A: This machine is suitable for industrial settings with ambient temperatures between 5C and 45C and is robustly designed to withstand dust and vibration. It requires a 380 V/415 V 3-Phase power source and adequate water supply for its cooling system.

Q: What types of products and industries benefit most from this model?

A: The 130T Cold Chamber Die Casting Machine is optimal for manufacturing high-precision aluminum, zinc, and copper alloy parts. Typical applications include automotive, hardware, electrical components, and appliance industries seeking reliable, energy-efficient mass production.

Q: How does the operator interface facilitate ease of use and productivity?

A: Operators can manage settings and monitor production through a digital touchscreen. Optional HMI and connectivity (RS232/USB) enable both manual and semi-automated modes, supporting process optimization and real-time adjustments.

Q: What are the key benefits of choosing this die casting machine for your production line?

A: Key advantages include rapid production cycles, precise and repeatable part quality, robust safety features, easy maintenance, energy efficiency, and the flexibility to process a variety of non-ferrous alloys, all supported by comprehensive installation and training.
