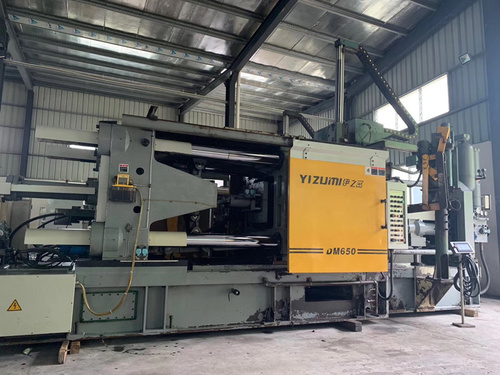

Used Yizumi 650t Cold Chamber Die Casting Machine

Used Yizumi 650t Cold Chamber Die Casting Machine

Name: Used Yizumi 650t Cold Chamber Die Casting Machine
Brand: Foshan Zhenyang Automation Science And Technology Co., Ltd.
Price: 75000-120000 USD
Availability: InStock

75000-120000 USD ($)/Set

Get a Price/Quote

Product Details:

Product Type Other
Technology Other
Power Source Electricity
Operating Type Semi Automatic
Power 37000 Watt (w)
Pressure 16 mpa
Surface Treatment Painted
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Used Yizumi 650t Cold Chamber Die Casting Machine Price And Quantity

Minimum Order Quantity 1 Set
Price 75000-120000 USD ($)/Set
Price Range 100000.00 - 200000.00 USD ($)/Set

Used Yizumi 650t Cold Chamber Die Casting Machine Product Specifications

Production Capacity 1 Pcs/min
Technology Other
Color Grey
Weight (kg) 31000 Kilograms (kg)
Surface Treatment Painted
Product Type Other
Dimension (L*W*H) 7950*2280*3100 Millimeter (mm)
Power Source Electricity
Usage & Applications Aluminium Die Casting
Power 37000 Watt (w)
Pressure 16 mpa
Operating Type Semi Automatic
Warranty Half Year

Used Yizumi 650t Cold Chamber Die Casting Machine Trade Information

FOB Port Guangzhou
Supply Ability 10 Set Per Month
Delivery Time 15 Days
Packaging Details Standard Exporting Package
Main Export Market(s) Western Europe, Australia, North America, Eastern Europe, Central America, Middle East, South America, Asia, Africa
Certifications CE Certificate

Product Description

Used Yizumi 650t Cold Chamber Die Casting Machine

Superior Injection System

Yizumi superior non-floating piston injection system has a low malfunction rate.

Central Lubrication System

The toggles are equipped with an automatic central lubrication system that allows separate adjustments of the lubrication interval and oil volume and improves the lifespan and reliability of the machine.

Highly Stable Toggle System

The high-rigidity mold opening and closing mechanism meets the requirements of high-speed machines and it is resistant to impacts and has long lifespan. In addition, the fast clamping system is a standard feature for the purpose of high-speed production.

Precise Hydraulic Control System

Multi-level electrically operated proportional pressure and flow control, as well as low-pressure mold protection is available.

Higher Efficiency

The injection system and extremely fast clamping system, built according to the new structural design of advanced foreign die casting machines, are much more reliable than traditional die casting machines and achieve high-speed production and higher output.

Used YIZUMI DC650T Cold Chamber Die Casting Machine Technological Date

ITEM	Unit	DC650T
Locking Force	KN	6500
Locking Stroke	mm	670
Die Height (Min. - Max.)	mm	350-900
Platen Size (HxV)	mm	1280*1280
Space Between Tie bars	mm	850*850
Tie Bar Diameter	mm	160
Injection Force	KN	540
Injection Stroke	mm	650
Plunger Diameter	mm	70/80/90
Injection Weight (Al)	KG	4.6/6.1/7.7
Casting Pressure (Intensify)	KN	140/107/84
Casting Area	cm	460/601/764
Max Casting Area(40Mpa)	cm	1625
Injection Position	mm	0,-250
Ejector Force	KN	280
Ejecting Stroke	mm	165
Motor Power	KW	37
System Working Pressure	MPa	16
Oil Tank Capacity	L	1000
Machine Weight	Kg	31000
Machine Dimensions (LxWxH)	mm	795022803100

Versatile and Durable Die Casting Performance

Manufactured for dependability, the Yizumi 650t features a semi-automatic operation designed for continuous use in rigorous aluminum die casting. Its durable construction, significant power capacity, and robust pressure capabilities make it a sought-after choice for manufacturers seeking consistent results and lasting productivity.

Efficient Industrial Productivity

With a production capability of 1 piece per minute and an energy-efficient electric drive system, this machine maximizes throughput while minimizing operational interruptions. Its ample dimensions and weight accommodate large-volume aluminum casting projects, making it suitable for distributors and exporters with high output requirements.

FAQs of Used Yizumi 650t Cold Chamber Die Casting Machine:

Q: How is the Used Yizumi 650t Cold Chamber Die Casting Machine operated?

A: The machine operates in a semi-automatic mode, combining automated functionality with manual oversight to ensure precise aluminum die casting and maintain quality control throughout the process.

Q: What types of applications is this die casting machine best suited for?

A: This machine is specifically designed for aluminum die casting applications, making it ideal for manufacturing large and complex aluminum components, commonly used in automotive, industrial, and consumer goods production.

Q: When does the warranty period begin, and what does it cover?

A: The half-year warranty starts upon delivery of the machine and generally covers defects in materials and workmanship, offering assurance and support for the initial phase of operation.

Q: Where should the Yizumi 650t machine be installed for optimal performance?

A: Install the machine in a spacious industrial facility with sufficient floor load capacity and proper access to a stable electrical supply, given its substantial weight and power requirements.

Q: What is the process for starting up and using the machine?

A: Begin by ensuring the machine is correctly installed and connected to the power source. After safety checks, operators can run the semi-automatic controls to load aluminum materials, set parameters, and initiate the die casting cycle.

Q: How does the surface treatment benefit the machines longevity?

A: The painted surface treatment provides a protective layer that resists corrosion, enhances the machines aesthetic appearance, and contributes to longer operational life, particularly in industrial environments.

Q: What are the main benefits for manufacturers choosing this used machine?

A: Manufacturers benefit from significant cost savings compared to new machinery, reliable performance for high-volume aluminum casting, robust build quality, and after-sales assurance with a half-year warranty.
