Used YIZUMI 300T Cold Chamber Die Casting Machine Used YIZUMI 300T Cold Chamber Die Casting Machine Used YIZUMI 300T Cold Chamber Die Casting Machine Used YIZUMI 300T Cold Chamber Die Casting Machine Used YIZUMI 300T Cold Chamber Die Casting Machine Used YIZUMI 300T Cold Chamber Die Casting Machine

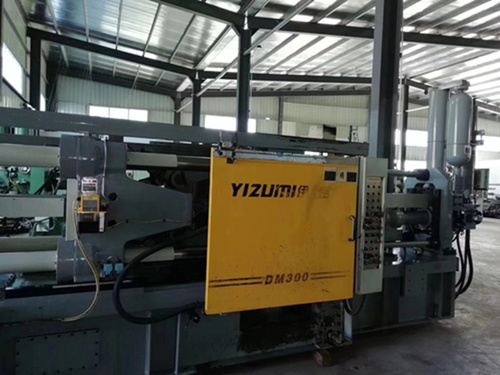

Used YIZUMI 300T Cold Chamber Die Casting Machine
Used YIZUMI 300T Cold Chamber Die Casting Machine Used YIZUMI 300T Cold Chamber Die Casting Machine Used YIZUMI 300T Cold Chamber Die Casting Machine Used YIZUMI 300T Cold Chamber Die Casting Machine Used YIZUMI 300T Cold Chamber Die Casting Machine

Used YIZUMI 300T Cold Chamber Die Casting Machine

40000-60000 USD ($)/Set

Product Details:

  • Product Type Other
  • Technology Other
  • Power Source Electricity
  • Operating Type Semi Automatic
  • Power 22000 Watt (w)
  • Pressure 16 mpa
  • Surface Treatment Painted
  • Supply Ability : 30 Set Per Month
  • Click to view more
X

Price And Quantity

  • 1 Set
  • 40000-60000 USD ($)/Set

Product Specifications

  • Painted
  • Electricity
  • Semi Automatic
  • Aluminium Die Casting
  • 16 mpa
  • Other
  • grey
  • 6200*1720*2750 Millimeter (mm)
  • 22000 Watt (w)
  • Other
  • One Year
  • 11000 Kilograms (kg)

Trade Information

  • Guangzhou
  • Western Union, Telegraphic Transfer (T/T), Letter of Credit at Sight (Sight L/C), Letter of Credit (L/C), Cash Against Delivery (CAD)
  • 30 Set Per Month
  • 20 Days
  • Standard Exporting Package
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • CE Certificate

Product Description

Superior Injection System

Yizumi superior non floating piston injection system has a low malfunction rate.

Central Lubrication System

The toggles are equipped with an automatic central lubrication system that allows separate adjustments of the lubrication interval and oil volume and improves the lifespan and reliability of the machine.



Highly Stable Toggle System

The high-rigidity mold opening and closing mechanism meets the requirements of high-speed machines and it is resistant to impacts and has long lifespan. In addition, the fast clamping system is a standard feature for the purpose of high-speed production.



Precise Hydraulic Control System

Multi-level electrically operated proportional pressure and flow control, as well as low-pressure mold protection is available.



Higher Efficiency

The injection system and extremely fast clamping system, built according to the new structural design of advanced foreign die casting machines, are much more reliable than traditional die casting machines and achieve high-speed production and higher output.

Used YIZUMI DC300T Cold Chamber Die Casting Machine Technological Date

ITEM

Unit

DC300T

Locking Force

KN

3000

Locking Stroke

mm

460

Die Height (Min.-Max.)

mm

250-700

Platen Size (HxV)

mm

870*870

Space Between Tie bars

mm

570*570

Tie Bar Diameter

mm

110

Injection Force

KN

320

Injection Stroke

mm

410

Plunger Diameter

mm

50/60/70

Injection Weight (Al)

KG

1.5/2.1/2.9

Casting Pressure (Intensify)

KN

163/113/83

Casting Area

cm²

182/263/357

Max Casting Area(40Mpa)

cm²

750

Injection Position

mm

0,-125

Ejector Force

KN

150

Ejecting Stroke

mm

110

Motor Power

KW

22

System Working Pressure

MPa

16

Oil Tank Capacity

L

600

Machine Weight

Kg

11000

Machine Dimensions (LxWxH)

mm

6200*1720*2750


Foshan Zhenyang Automation Science And Technology Co., Ltd.
