Used Lk 160t Cold Chamber Die Casting Machine
Used Lk 160t Cold Chamber Die Casting Machine Used Lk 160t Cold Chamber Die Casting Machine Used Lk 160t Cold Chamber Die Casting Machine Used Lk 160t Cold Chamber Die Casting Machine Used Lk 160t Cold Chamber Die Casting Machine

Used Lk 160t Cold Chamber Die Casting Machine

25000-30000 USD ($)/Set

Product Details:

  • Product Type Other
  • Technology Other
  • Power Source Electricity
  • Operating Type Automatic
  • Power 15000 Watt (w)
  • Pressure 14 mpa
  • Surface Treatment Painted
  • Supply Ability : 30 Set Per Month
  • Click to view more
X

Price And Quantity

  • 25000-30000 USD ($)/Set
  • 1 Set

Product Specifications

  • Other
  • die casting industry
  • Green
  • Other
  • 15000 Watt (w)
  • 2 Pcs/min
  • Painted
  • Electricity
  • 5600*1640*2564 Millimeter (mm)
  • 7000 Kilograms (kg)
  • 14 mpa
  • Automatic
  • half year

Trade Information

  • Guangzhou
  • Cash in Advance (CID), Western Union, Telegraphic Transfer (T/T), Letter of Credit (L/C), Cash on Delivery (COD), Cash Against Delivery (CAD)
  • 30 Set Per Month
  • 7 Days
  • Contact us for information regarding our sample policy
  • Standard exporting package
  • Africa, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • CE Certificate

Product Description

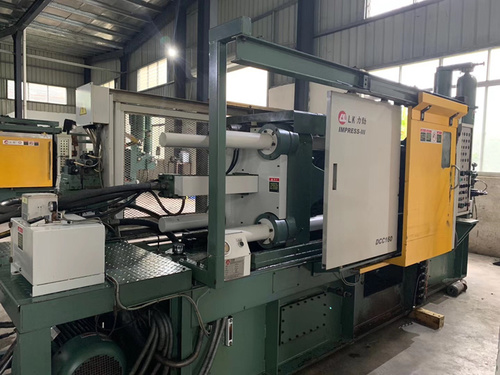

Used Lk 160t Cold Chamber Die Casting Machine
  • Individual accumulators ensure stable injection pressure

  • Proximity switch for die clamping and opening

  • Low pressure die clamping protection function

  • The gear type die height adjustment system provide stable and precise adjustment.

  • Automatic lubrication system

  • Four Phase injection system

  • Good quality hydraulic pump

  • Hydraulic ejector device

  • Double-toggle lock mould structure

  • Omron PLC and Delta touch screen



Used LK DCC160T Cold Chamber Die Casting Machine Technological Date

ITEM

Unit

DCC160T

Locking Force

KN

1600

Die Opening Stroke

mm

380

Ejector Force

KN

108

Ejector Stroke

mm

85

Die Height (Min. - Max.)

mm

200-550

Die Platen Size (HxV)

mm

680*680

Space Between Tie bars

mm

460*460

Injection Stroke

mm

340

Injection Force (Intensify)

KN

270

Plunger Diameter

mm

40/50/60

Shot Weight (Al)

KG

0.8/1.3/1.8

Casting Pressure (Intensify)

KN

214/137/95

Casting Area

cm²

74/116/167

Casting Area Max(40Mpa)

cm²

400

Main Pump Driving Motor

KW

15

Working Pressure

MPa

14

Oil Tank Capacity

L

520

Machine Dimensions (LxWxH)

mm

5600*1640*2564

Machine Weight

Ton

7
