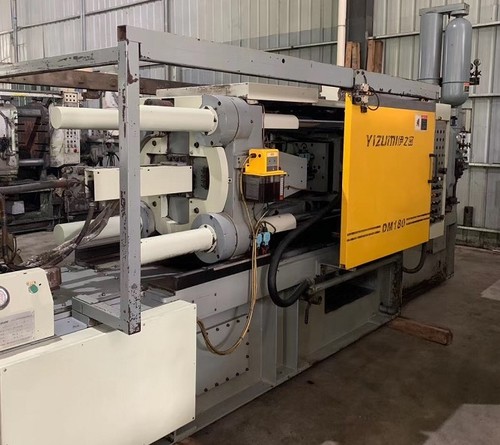

Used YIZUMI 180T Cold Chamber Die Casting Machine
Used YIZUMI 180T Cold Chamber Die Casting Machine Used YIZUMI 180T Cold Chamber Die Casting Machine Used YIZUMI 180T Cold Chamber Die Casting Machine Used YIZUMI 180T Cold Chamber Die Casting Machine Used YIZUMI 180T Cold Chamber Die Casting Machine

Used YIZUMI 180T Cold Chamber Die Casting Machine

25000-35000 USD ($)/Set

Product Details:

  • Product Type Other
  • Technology Other
  • Power Source Electricity
  • Operating Type Semi Automatic
  • Power 15000 Watt (w)
  • Pressure 14 mpa
  • Surface Treatment Painted
  • Supply Ability : 20 Set Per Month
  • Click to view more
X

Price And Quantity

  • 1 Set
  • 25000-35000 USD ($)/Set

Product Specifications

  • 5600*1500*2700 Millimeter (mm)
  • Semi Automatic
  • 14 mpa
  • 6400 Kilograms (kg)
  • 15000 Watt (w)
  • Other
  • Grey
  • Aluminium Die Casting
  • Painted
  • Electricity
  • One Year
  • Other

Trade Information

  • Guangzhou
  • Western Union, Telegraphic Transfer (T/T), Letter of Credit at Sight (Sight L/C), Letter of Credit (L/C), Cash in Advance (CID), Cash Against Delivery (CAD)
  • 20 Set Per Month
  • 15 Days
  • standard exporting package
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • CE Certificate

Product Description

Superior Injection System: Yizumis superior non-floating piston injection system has a low malfunction rate.

Central Lubrication System: The toggles are equipped with an automatic central lubrication system that allows separate adjustments of the lubrication interval and oil volume and improves the lifespan and reliability of the machine.

Highly Stable Toggle System: The high-rigidity mold opening and closing mechanism meets the requirements of high-speed machines and it is resistant to impacts and has long lifespan. In addition, the fast clamping system is a standard feature for the purpose of high-speed production.





Precise Hydraulic Control System: Multi-level electrically operated proportional pressure and flow control, as well as low-pressure mold protection is available.





Higher Efficiency: The injection system and extremely fast clamping system, built according to the new structural design of advanced foreign die casting machines, are much more reliable than traditional die casting machines and achieve high-speed production and higher output.

Used YIZUMI DC180T Cold Chamber Die Casting Machine Technological Date

ITEM

Unit

DC180T

Locking Force

KN

1800

Locking Stroke

mm

380

Die Height (Min. - Max.)

mm

200-600

Platen Size (HxV)

mm

710*710

Space Between Tie bars

mm

480*480

Tie Bar Diameter

mm

85

Injection Force

KN

280

Injection Stroke

mm

350

Plunger Diameter

mm

50/60

Injection Weight (Al)

KG

1.2/1.8

Casting Pressure (Intensify)

KN

142/99

Casting Area

cm²

125/180

Max Casting Area(40Mpa)

cm²

450

Injection Position

mm

0,-100

Ejector Force

KN

105

Ejecting Stroke

mm

90

Motor Power

KW

15

System Working Pressure

MPa

14

Oil Tank Capacity

L

500

Machine Weight

Kg

6400

Machine Dimensions (LxWxH)

mm

5600*1500*2700
