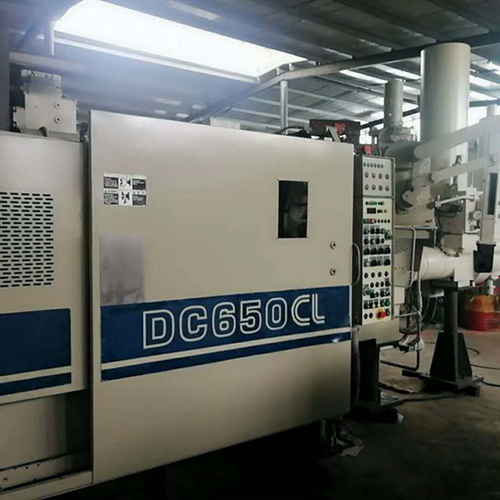

Used TOSHIBA 650T Die Casting Machine

100000.00 - 200000.00 USD ($)/Set

Get a Price/Quote

Product Details:

Control System PLC (Programmable Logic Controller)
Operating Temperature Ambient to 45C
Power Rating 650 Ton
Motor Power Approx. 30-40 kW
Lubricating System Automatic Centralized Lubrication
Production Capacity Variable (based on mold and cycle time)
Frequency 50/60 Hz
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Used TOSHIBA 650T Die Casting Machine Price And Quantity

Minimum Order Quantity 1 Set
Price Range 100000.00 - 200000.00 USD ($)/Set

Casting Material Aluminum, Zinc, Magnesium Alloys
Ejector Force 25 Ton
Hydraulic System Pressure Up to 160 kg/cm²
Ejector Stroke 140 mm
Injection Force 490 kN
Year of Manufacture 2010 (Varies per unit)
Condition Tested, Good Working, Used
Opening Stroke 750 mm
Shot Cylinder Diameter 80-90 mm (Varies)
Platen Size 1250 mm x 1250 mm
Shot Weight 7.5 kg Aluminum (Max)
Min Die Height 350 mm
Emergency Stop Integrated Safety
Tie Bar Distance 850 mm x 850 mm
Max Die Height 900 mm
Injection Stroke 700 mm
Pump Type Vane/Variable Displacement
Control Panel Digital/Touch Panel (old-gen)

Used TOSHIBA 650T Die Casting Machine Product Specifications

Surface Treatment Painted/Coated
Technology Cold Chamber Die Casting
Product Type Used Die Casting Machine
Usage & Applications Aluminum/Magnesium/Zinc Die Casting, Automotive, Industrial Components
Accuracy 0.05 mm (dependent on maintenance)
Frequency 50/60 Hz
Features Robust Construction, Fast Injection, Large Platen Area, High Repeatability
Voltage 380-415V
Noise Level <85 dB
Power Approx. 40 kW
Production Capacity Variable (based on mold and cycle time)
Power Rating 650 Ton
Control System PLC (Programmable Logic Controller)
Operating Temperature Ambient to 45C
Dimension (L*W*H) Approx. 7,200mm x 2,200mm x 2,800mm
Power Source Electric
Lubricating System Automatic Centralized Lubrication
Pressure Up to 650 Ton Clamping Force
Motor Power Approx. 30-40 kW
Machine Type Used Die Casting, Cold Chamber
Drive Hydraulic
Connectivity Options Basic I/O, Optional Integration Ready
Color Grey/Blue
Plastic Processed Not Applicable (Metal Die Casting)
Cooling System Water Cooled
Operating Type Automatic
Model No TOSHIBA 650T
Frame Type Four Tie Bar
Weight (kg) Approx. 28,000 kg

Casting Material Aluminum, Zinc, Magnesium Alloys
Ejector Force 25 Ton
Hydraulic System Pressure Up to 160 kg/cm²
Ejector Stroke 140 mm
Injection Force 490 kN
Year of Manufacture 2010 (Varies per unit)
Condition Tested, Good Working, Used
Opening Stroke 750 mm
Shot Cylinder Diameter 80-90 mm (Varies)
Platen Size 1250 mm x 1250 mm
Shot Weight 7.5 kg Aluminum (Max)
Min Die Height 350 mm
Emergency Stop Integrated Safety
Tie Bar Distance 850 mm x 850 mm
Max Die Height 900 mm
Injection Stroke 700 mm
Pump Type Vane/Variable Displacement
Control Panel Digital/Touch Panel (old-gen)

Used TOSHIBA 650T Die Casting Machine Trade Information

Supply Ability 10 Set Per Month
Delivery Time 15 Days

Product Description

Feature

Adopt Toshiba traditional fast die locking design to ensure die locking rigidity and improve working efficiency.
The injection frame and fixed mould platen are machined simultabneously to esnure rigidity and concentricity.
Intergrated injection system could reduce oil leakage and improve reaction and injection performance.
Strong memory dunction could store different mould parameters
The system is equipped with self diagnosing and failure alarm function for easy removal problems.
Injection curve display function could control and supervise every movement speed,pressure and position.

Used Toshiba 650T Die Casting Machine Technological Date

ITEM	Unit	DC650T
Die Locking Force	KN	6500
Platen Dimension	mm	1200X1200
Space Between Tie Bar	mm	850X850
Tie Bar Diameter	mm	160
Die Locking Stroke	mm	660
Max Injection Force	KN	550
Intensification Rotio	----	1:2.52
Injection Stroke	mm	670
Ejector Force	KN	300
Ejector Stroke	mm	15-125
Number Of Movable Core	Unit	1
Number Of Movable Core Port	Unit	3/4" X 2
Operating Pressure	Mpa	15
Required Hydraulic Oil Volumn	L	900
Hydraulic Pump Motor Power	KW	37
Machine Required Area(LxWxH)	mm	809023453875
Machine Weight	Ton	26

High Productivity and Versatility

The Toshiba 650T Die Casting Machine delivers reliable performance with a clamping force up to 650 tons and a large platen area for a range of mold sizes. Suitable for automotive and industrial parts, it handles aluminum, zinc, and magnesium alloys efficiently. Its cold chamber technology ensures consistent results, making this machine ideal for diverse die casting requirements.

Robust Build and Safety Features

Engineered for durability, the TOSHIBA 650T features a strong four tie bar frame, integrated emergency stop, and a centralized automatic lubrication system that extends machine life. The digital/touch panel control and PLC offer user-friendly operation and enhanced process control, while the water-cooling system ensures stable operation even during extended production cycles.

Flexible Application and Easy Maintenance

With a shot weight capacity of up to 7.5 kg and adjustable die heights, this machine accommodates varying mold configurations. Its automatic and self-lubricating design minimizes manual interventions, and essential parts have been tested for reliable, continued use. Suited for distributors, exporters, and manufacturers, its an economical solution for expanding die casting operations.

FAQs of Used TOSHIBA 650T Die Casting Machine:

Q: How is the Toshiba 650T die casting machine used in industrial applications?

A: The TOSHIBA 650T is used to produce high-precision metal parts from aluminum, magnesium, and zinc alloys, making it ideal for automotive, industrial components, and various manufacturing needs. Its robust construction and automation ensure efficiency and accuracy during repeated cycles.

Q: What alloys can be processed with this die casting machine?

A: This machine is specially designed to handle aluminum, zinc, and magnesium alloys, ensuring flexible casting possibilities for different industry requirements.

Q: When should the die height and shot cylinder diameter be adjusted?

A: Die height and shot cylinder diameter should be adjusted based on the size and design of the mold and the required metal shot weight, maximizing both casting quality and efficiency. Consult the technical manual or an experienced operator for optimal settings.

Q: Where is this used Toshiba 650T die casting machine typically installed?

A: The machine is suitable for installation in large-scale manufacturing environments such as automotive part factories, industrial component plants, and metal foundries needing high-capacity and precise die casting capabilities.

Q: What is the process for operating and maintaining this used machine?

A: Operation involves loading the metal, setting the mold, and configuring the PLC/touch control for the casting cycle. The machine features automatic lubrication and water cooling for reliability. Routine inspections and preventive maintenance are essential for sustaining its accuracy and extending its service life.

Q: How does the machine ensure operational safety?

A: Operational safety is maintained through an integrated emergency stop, robust construction, and user-friendly digital/touch control panels, minimizing risk and allowing safe, continuous operation.

Q: What are the key benefits of choosing a used, tested Toshiba 650T?

A: Opting for a used, tested machine offers significant cost savings while providing proven performance, tested functionality, and a quick start-up compared to new units. Its established reliability and available integration options make it a prudent investment for expanding production capacity.
