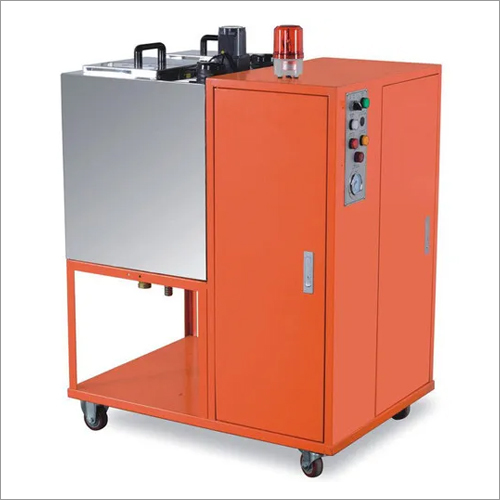

Die Casting Machine Release Agent Mixer

Name: Die Casting Machine Release Agent Mixer
Brand: Foshan Zhenyang Automation Science And Technology Co., Ltd.
Price: 3500-6000 USD
Availability: InStock

3500-6000 USD ($)/Set

Get a Price/Quote

Product Details:

Production Capacity 100 L/hr
Noise Level <65 dB
Operating Temperature 5-45C
Features Stainless steel tank, Auto dosing, Adjustable mixing ratio, Easy maintenance
Power Rating 1.5 kW
Frequency 50/60 Hz
Machine Type Mixer Machine
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Die Casting Machine Release Agent Mixer Price And Quantity

Price Range 100000.00 - 200000.00 USD ($)/Set
Minimum Order Quantity 1 Set
Price 3500-6000 USD ($)/Set

Display LED Digital Display
Fault Detection Integrated Alarm System
Release Agent Inlet 1/4 Inch BSP
Agitator Type High Efficiency Turbine
Mounting Floor Standing
Main Material SUS304 Stainless Steel
Level Sensor Float Level Switch
Tank Capacity 120 Liters
Application Industry Aluminum & Mold Die Casting
Mixing Ratio Range 1:20 to 1:200
Input Water Connection 1/2 Inch BSP

Die Casting Machine Release Agent Mixer Product Specifications

Power Source Electric
Accuracy 1%
Product Type Die Casting Machine Release Agent Mixer
Surface Treatment Paint Coated
Technology Mixing and Dosing
Voltage 220V/380V
Control System PLC-Based Control
Machine Type Mixer Machine
Color Silver & Blue
Power Rating 1.5 kW
Pressure 0.2-0.6 MPa
Frequency 50/60 Hz
Frame Type Welded Steel Frame
Drive Direct Drive
Model No DCM-100
Usage & Applications For mixing and supply of release agent in die casting process
Motor Power 1.1 kW
Connectivity Options Standard electrical connection
Cooling System Air-Cooled
Power 1.5 kW
Features Stainless steel tank, Auto dosing, Adjustable mixing ratio, Easy maintenance
Dimension (L*W*H) 700 x 450 x 950 mm
Operating Temperature 5-45C
Operating Type Automatic
Production Capacity 100 L/hr
Weight (kg) 65 kg
Noise Level <65 dB

Display LED Digital Display
Fault Detection Integrated Alarm System
Release Agent Inlet 1/4 Inch BSP
Agitator Type High Efficiency Turbine
Mounting Floor Standing
Main Material SUS304 Stainless Steel
Level Sensor Float Level Switch
Tank Capacity 120 Liters
Application Industry Aluminum & Mold Die Casting
Mixing Ratio Range 1:20 to 1:200
Input Water Connection 1/2 Inch BSP

Die Casting Machine Release Agent Mixer Trade Information

FOB Port Guangzhou
Payment Terms Cash Against Delivery (CAD), Letter of Credit (L/C), Telegraphic Transfer (T/T), Western Union, Letter of Credit at Sight (Sight L/C)
Supply Ability 10 Set Per Month
Delivery Time 15 Days
Packaging Details wooden box package
Main Domestic Market All India
Certifications CE certificate

Product Description

Die Casting Machine Release Agent Mixer

Type	ZYHA-1	ZYHA-2	ZYHA-3
Specification	one to one	one to four	one to eight
Pressure	Above 5Bar
Flow rate	135L/Min		170L/Min
Size	620750900mm	6509001120mm	6806601040mm
N.W.	95KG	113KG/140KG	123KG/180KG
Voltage	AC220V Single phase AC220V

Feature:

Adopt good quality components with low defect rate and long service life (eg:france DOSATRON and american brand PODALE pump)
Automatic proportional valve control release agent and water ratio;the concentration could be adjusted automatically with flow to ensure the solution precision and stability,Dilution ratio adjustment range is from 50 times to 500 times.
Both the general and special release agent could be mixed.
The stainless steel mixed barrel with intelligent liquid level detection system,when its lower than the setted value;system will alarm;more humanized and safe.
Electric-driven blade ratory device to mix solution more evenly
High quality pneumatic pump could output mixed liquid with with constant pressure.
Proportional and water valve will open to compensate mixed liquid when it reach to lower limit until it come back to upper limit.

Advanced Mixing Technology for Superior Performance

Equipped with a high-efficiency turbine agitator and automatic dosing controls, the DCM-100 ensures homogeneous blending of release agents. The adjustable mixing ratio and PLC-based system allow precise agent delivery, improving the quality and efficiency of the die casting process. Built with durable SUS304 stainless steel and an air-cooled system, it promises longevity and minimal downtime.

User-Friendly Operation and Maintenance

The mixer features an intuitive LED digital display for easy monitoring and management. Automated alarms and float level switches help prevent operational faults, while the paint-coated surface and welded steel frame facilitate straightforward cleaning and extended machine life. Its floor-standing design makes installation and upkeep convenient for plant operators.

Reliable Solution for Die Casting Applications

Designed specifically for use in aluminum and mold die casting applications, this mixer consistently delivers precise dosing and mixing. With a 120-liter capacity and a production rate of up to 100 L/hr, it suits both large and medium-scale manufacturing environments, enhancing productivity while reducing the risk of production errors.

FAQs of Die Casting Machine Release Agent Mixer:

Q: How does the integrated alarm system contribute to safe operation?

A: The built-in alarm system promptly alerts operators to any faults or issues such as low agent levels or operational errors, allowing for immediate corrective action and minimizing the risk of production downtime or equipment damage.

Q: What is the process for adjusting the mixing ratio on the DCM-100?

A: Operators can easily set the desired mixing ratio, ranging from 1:20 to 1:200, using the PLC-based control system and user-friendly LED digital display. This ensures precise and repeatable agent preparation tailored to specific die casting requirements.

Q: When should routine maintenance be performed on the mixer?

A: Regular maintenance should be scheduled according to usage frequency, typically involving cleaning the stainless steel tank, checking connections, and inspecting the agitator and float level switch to ensure optimal performance and longevity.

Q: Where is this mixer most effectively used?

A: The DCM-100 is best suited for aluminum and mold die casting facilities that require consistent, high-volume mixing and dosing of release agents. Its robust design and efficient output make it ideal for manufacturing plants and foundries.

Q: What benefits does the high-efficiency turbine agitator provide?

A: The turbine agitator delivers comprehensive and uniform mixing, preventing separation or settling of the release agent. This enhances application quality, reduces material waste, and supports a smoother die casting process.

Q: How does the float level switch enhance the machines reliability?

A: The float level switch continuously monitors agent levels within the tank, automatically signaling the control system if replenishment is needed, thus maintaining process continuity and protecting the pump and mixing system.
