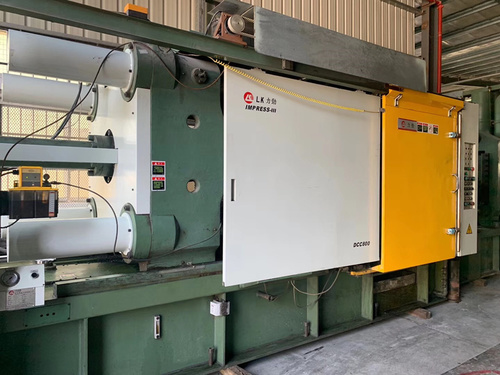

Used LK 800T Cold Chamber Die Casting Machine

Used LK 800T Cold Chamber Die Casting Machine

Product Details:

X

Product Description

Individual accumulators ensure stable injection pressure Proximity switch for die clamping and opening Low pressure die clamping protection function The gear type die height adjustment system provide stable and precise adjustment.Automatic lubrication system Four Phase injection system Good quality hydraulic pump Hydraulic ejector device Double-toggle lock mould structure Omron PLC and Delta touch screen

Used LK DCC800T Cold Chamber Die Casting Machine Technological Date

ITEM

Unit

DCC800T

Locking Force

KN

8000

Die Opening Stroke

mm

760

Ejector Force

KN

315

Ejector Stroke

mm

180

Die Height (Min. - Max.)

mm

400-950

Die Platen Size (HxV)

mm

140*140

Space Between Tie Bars

mm

910*910

Shot Stroke

mm

760

Injection Force (Intensify)

KN

680

Plunger Diameter

mm

80/90/100

Shot Weight (Al)

KG

7.1/9/11.2

Casting Pressure (Intensify)

KN

135/106/86

Casting Area

cm²

591/748/924

Casting Area Max(40Mpa)

cm²

2000

Main Pump Driving Motor

KW

45

Working Pressure

MPa

14

Oil Tank Capacity

L

1300

Machine Dimensions (LxWxH)

mm

8840*2345*2995

Machine Weight

Ton

31.5


Foshan Zhenyang Automation Science And Technology Co., Ltd.
