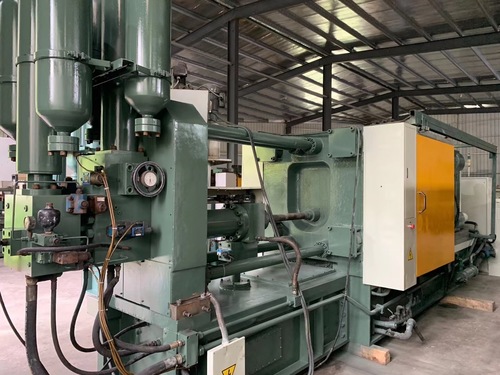

Used LK 630T Cold Chamber Die Casting Machine
Product Details:
- Product Type Other
- Technology Other
- Power Source Electricity
- Operating Type Semi Automatic
- Power 37000 Watt (w)
- Pressure 14 mpa
- Surface Treatment Painted
- Click to View more
Used LK 630T Cold Chamber Die Casting Machine Price And Quantity
- 1 Set
- 100000.00 - 200000.00 USD ($)/Set
Used LK 630T Cold Chamber Die Casting Machine Product Specifications
- Green
- Electricity
- 1 Pcs/min
- Other
- Painted
- 24500 Kilograms (kg)
- 8110*2150*2900 Millimeter (mm)
- Half Year
- 14 mpa
- Semi Automatic
- 37000 Watt (w)
- Aluminium Die Casting
- Other
Used LK 630T Cold Chamber Die Casting Machine Trade Information
- Guangzhou
- Cash Advance (CA) Letter of Credit (L/C) Letter of Credit at Sight (Sight L/C) Western Union Telegraphic Transfer (T/T) Cash in Advance (CID)
- 10 Set Per Month
- 15 Days
- Contact us for information regarding our sample policy
- Standard Exporting Package
- CE Certificate
Product Description
Used LK 630T Cold Chamber Die Casting Machine
Individual accumulators ensure stable injection pressure
Proximity switch for die clamping and opening
Low pressure die clamping protection function
The gear type die height adjustment system provide stable and precise adjustment.
Automatic lubrication system
Four Phase injection system
Good quality hydraulic pump
Hydraulic ejector device
Double-toggle lock mould structure
Omron PLC and Delta touch screen
Used LK DCC630T Cold Chamber Die Casting Machine Technological Date
|
ITEM |
Unit |
DCC630T |
|
Locking Force |
KN |
6300 |
|
Die Opening Stroke |
mm |
650 |
|
Ejector Force |
KN |
315 |
|
Ejector Stroke |
mm |
150 |
|
Die Height (Min. - Max.) |
mm |
350-850 |
|
Die Platen Size (HxV) |
mm |
1200*1200 |
|
Space Between Tie Bars |
mm |
750*750 |
|
Shot Stroke |
mm |
600 |
|
Injection Force (Intensify) |
KN |
590 |
|
Plunger Diameter |
mm |
70/80/90 |
|
Shot Weight (Al) |
KG |
4.3/5.6/7.2 |
|
Casting Pressure (Intensify) |
KN |
153/117/92 |
|
Casting Area |
cm² |
410/536/679 |
|
Casting Area Max(40Mpa) |
cm² |
1575 |
|
Main Pump Driving Motor |
KW |
37 |
|
Working Pressure |
MPa |
14 |
|
Oil Tank Capacity |
L |
1100 |
|
Machine Dimensions (LxWxH) |
mm |
8110*2150*2900 |
|
Machine Weight |
Ton |
24.5 |
