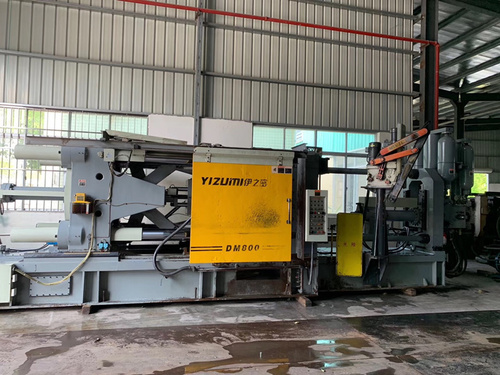

Used YIZUMI DC800T Cold Chamber Die Casting Machine

Used YIZUMI DC800T Cold Chamber Die Casting Machine

Product Details:

X

Product Description

 Superior Injection System

Yizumi s superior non-floating piston injection system has a low malfunction rate.

 Central Lubrication System

The toggles are equipped with an automatic central lubrication system that allows separate adjustments of the lubrication interval and oil volume and improves the lifespan and reliability of the machine.

Highly Stable Toggle System

The high-rigidity mold opening and closing mechanism meets the requirements of high-speed machines and it is resistant to impacts and has long lifespan. In addition, the fast clamping system is a standard feature for the purpose of high-speed production.

Precise Hydraulic Control System

Multi-level electrically operated proportional pressure and flow control, as well as low-pressure mold protection is available.

Higher Efficiency

The injection system and extremely fast clamping system, built according to the new structural design of advanced foreign die casting machines, are much more reliable than traditional die casting machines and achieve high-speed production and higher output.



Used YIZUMI DC800T Cold Chamber Die Casting Machine Technological Date

ITEM

Unit

DC800T

Locking Force

KN

8000

Locking Stroke

mm

760

Die Height (Min. - Max.)

mm

400-950

Platen Size (HxV)

mm

1420*1420

Space Between Tie bars

mm

930*930

Tie Bar Diameter

mm

180

Injection Force

KN

645

Injection Stroke

mm

760

Plunger Diameter

mm

80/90/100

Injection Weight (Al)

KG

7.1/9/11.1

Casting Pressure (Intensify)

KN

128/101/82

Casting Area

 cm²

620/784/963

Max Casting Area(40Mpa)

 cm²

2000

Injection Position

mm

0,-250

Ejector Force

KN

300

Ejecting Stroke

mm

200

Motor Power

KW

45

System Working Pressure

MPa

16

Oil Tank Capacity

L

1200

Machine Weight

 Kg

40000

Machine Dimensions (LxWxH)

mm

9000*2420*3220
