Used Lk 700t Die Casting Machine
Used Lk 700t Die Casting Machine Used Lk 700t Die Casting Machine Used Lk 700t Die Casting Machine Used Lk 700t Die Casting Machine Used Lk 700t Die Casting Machine

Used Lk 700t Die Casting Machine

800000-120000 USD ($)/Set

Product Details:

  • Product Type Other
  • Technology Other
  • Power Source Electricity
  • Operating Type Semi Automatic
  • Power 37000 Watt (w)
  • Pressure 14 mpa
  • Surface Treatment Painted
  • Supply Ability : 30 Set Per Month
  • Click to view more
X

Price And Quantity

  • 1 Set
  • 800000-120000 USD ($)/Set

Product Specifications

  • Other
  • 29000 Kilograms (kg)
  • 8460*2230*2945 Millimeter (mm)
  • Electricity
  • Half Year
  • Other
  • 14 mpa
  • Painted
  • Semi Automatic
  • 1 Pcs/min
  • Green
  • Aluminium Die Casting
  • 37000 Watt (w)

Trade Information

  • Guangzhou
  • Western Union, Telegraphic Transfer (T/T), Letter of Credit at Sight (Sight L/C), Letter of Credit (L/C), Cash in Advance (CID), Cash Advance (CA)
  • 30 Set Per Month
  • 10 Days
  • Contact us for information regarding our sample policy
  • Standard Exporting Package
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • CE Certificate

Product Description

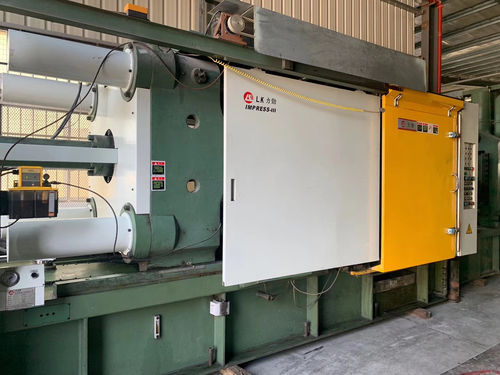

Used Lk 700t Die Casting Machine

Individual accumulators ensure stable injection pressure

Proximity switch for die clamping and opening

Low pressure die clamping protection function

The gear type die height adjustment system provide stable and precise adjustment.

Automatic lubrication system

Four Phase injection system

Good quality hydraulic pump

Hydraulic ejector device

Double-toggle lock mould structure

Omron PLC and Delta touch screen



Used LK DCC700T Cold Chamber Die Casting Machine Technological Date

ITEM

Unit

DCC700T

Locking Force

KN

7000

Die Opening Stroke

mm

720

Ejector Force

KN

315

Ejector Stroke

mm

160

Die Height (Min. - Max.)

mm

350-900

Die Platen Size (HxV)

mm

1300*1300

Space Between Tie Bars

mm

800*800

Shot Stroke

mm

700

Injection Force (Intensify)

KN

590

Plunger Diameter

mm

80/90/100

Shot Weight (Al)

KG

6.5/8.3/10

Casting Pressure (Intensify)

    KN

117/92/75

Casting Area

    cm²

596/754/931

Casting Area Max(40Mpa)

cm²

1750

Main Pump Driving Motor

KW

37

Working Pressure

MPa

14

Oil Tank Capacity

L

1200

Machine Dimensions (LxWxH)

mm

8460*2230*2945

Machine Weight

    Ton

            29
