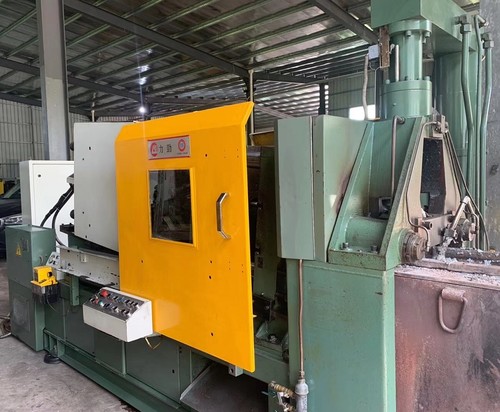

Used LK 160T Hot Chamber Die Casting Machine

Used LK 160T Hot Chamber Die Casting Machine

Product Details:

X

Product Description

LK hot chamber die casting machine represents advanced and professional die casting.LK has applied latest technologies to fulfill high requirement production. The concept of environmental responsibility is promoted to follow the major trend among the world. Stable and high performance injection system with 2-stage injection control. Injection powered by piston type accumulator, providing high injection speed. Advanced control ensures fast and reliable operation for machine production. High precision hydraulic system provides accurate pressure and flow control to ensure reliable production.

Used LK DC160T Hot Chamber Die Casting Machine Technological Date

  Item

Unit

DC160T

Locking Force

KN

1600

Die Opening Stroke

mm

350

Die Height(Min-Max)

mm

205-505

Platen Size(HXV)

mm

671x666

Space Between Tie Bar

mm

459x459

Ejector Force

KN

108

Ejector Stroke

mm

85

Injection Force

KN

108

Injection Stroke

mm

150

Plunger Diameter

mm

60/65/70

Shot Weight(Zn)

Kg

2.1/2.4/2.86

Casting Pressure

Mpa

38.9/33.1/28.6

Casting Area

411/483/559

Shot Position

mm

0/-80

Nozzle Traverse Stroke

mm

200

Hydraulic Working Pressure

Mpa

14

Motor Power

Kw

15

Hydraulic tank oil capacity

L

300

Nozzle Heating Power

Kw

2.5

Furnace Capacity

Kg

360

Electric Furnace Power

Kw

30

Machine Dimension(LXWXH)

mm

4780x1700x2300

Machine Weight

Kg

6000
