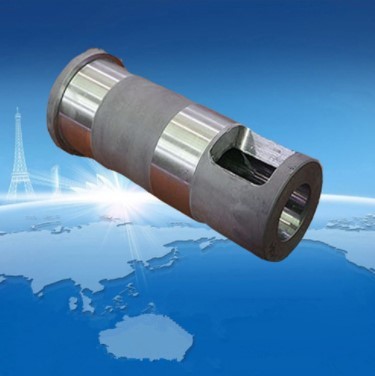

Cold Chamber Die Casting Machine Injection Sleeve

Cold Chamber Die Casting Machine Injection Sleeve
Cold Chamber Die Casting Machine Injection Sleeve
Send Inquiry
Product Code : LK,YIZUMI,PRODUCER
Brand Name : Zhenyang
Product Description

Cold Chamber Die Casting Machine Injection Sleeve



Model No.

180T

200T

230T

260T

300T

400T

500T

Flange diameter

110

110

110

110

110

110

165

Inside diameter

40/50/60

50/60/70

50/60/70

50/60/70

50/60/70

60/70/80

70/80/90

Flange protrusion

10

10

10

12

12

12

15



Model No.

630T

700T

800T

1000T

1250T

1650T

2000T

Flange diameter

165

165

210

240

240

260

260

Inside diameter

70/80/90

80/90

90/100

100/110

100/140

110/150

130/170

Flange protrusion

10

10

10

20

20

20

20



Its inner hole has been ground and measured by three coordination measuring apparatus,which can guarantee the high precision in dimension.



Made of high quality hot working steel,quenched under high pressure in vacuum and processed with nitrogen




Foshan Zhenyang Automation Science And Technology Co., Ltd.
